Verdict 23/2043 Small Dial Gauge KM 4 T Reading 0.01 mm Range 3 mm Range per revolution 0.5 mm Bezel-Ø 40 mm Stem-Ø 8 h 6
Verdict 23/2043 Small Dial Gauge KM 4 T Reading 0.01 mm Range 3 mm Range per revolution 0.5 mm Bezel-Ø 40 mm Stem-Ø 8 h 6
Verdict 23/2043 Small Dial Gauge KM 4 T Reading 0.01 mm Range 3 mm Range per revolution 0.5 mm Bezel-Ø 40 mm Stem-Ø 8 h 6
Roll over image to zoom in Click on image to zoom
Verdict 23/2043 Small Dial Gauge KM 4 T Reading 0.01 mm Range 3 mm Range per revolution 0.5 mm Bezel-Ø 40 mm Stem-Ø 8 h 6Verdict 23/2043 Small Dial Gauge KM 4 T Reading 0.01 mm Range 3 mm Range per revolution 0.5 mm Bezel-Ø 40 mm Stem-Ø 8 h 6Verdict 23/2043 Small Dial Gauge KM 4 T Reading 0.01 mm Range 3 mm Range per revolution 0.5 mm Bezel-Ø 40 mm Stem-Ø 8 h 6

Verdict 23/2043 Small Dial Gauge KM 4 T Reading 0.01 mm Range 3 mm Range per revolution 0.5 mm Bezel-Ø 40 mm Stem-Ø 8 h 6

Kaefer SKU: 23/2043
Price:
€86.00
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Spindle and stem are made of resistant stainless steel.

Verdict 23/2043 is manufactured by Kaefer in Germany

This High Precision Small Dial Gauge KM 4 T is equipped with a high-class impact protection and has an extremely long service life. A gear rack sleeve covering the length of the spindle is arranged and sprung in such a way that the shocks against the measuring insert are not transferred to the measuring gear. The Small Dial Gauge is robust in operation. It's precision is maintained with practically no limitations.

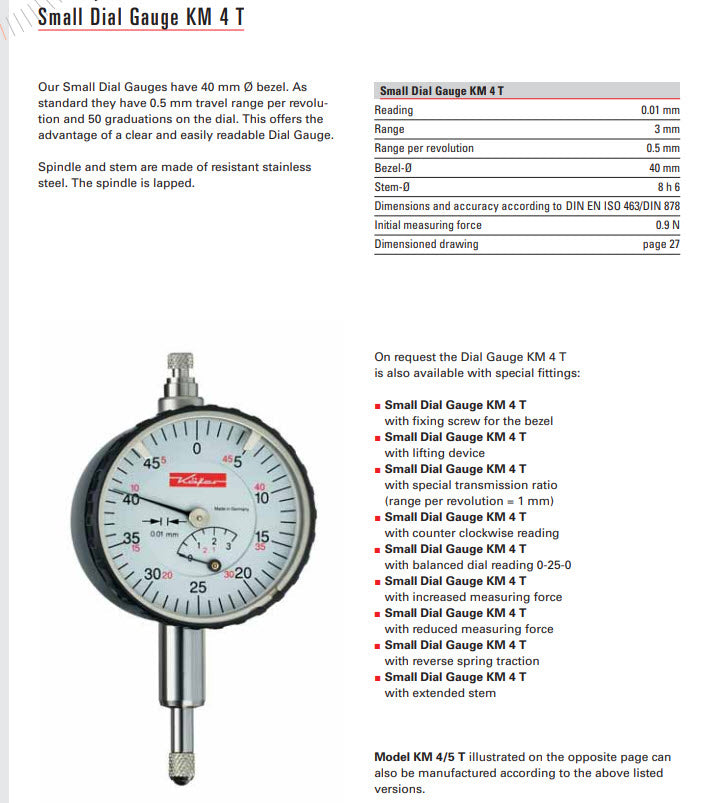

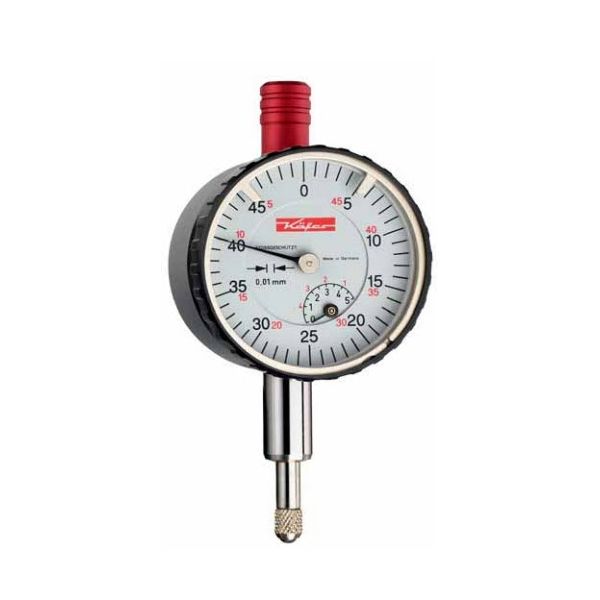

KÄFER Dial Gauge KM 4 T - Shockproof

KAFER Ref: 10006

Reading: 0.01 mm

Range: 3 mm

Bezel Ø 40 mm

With metal lifting cap to raise the plunger easily and prevent ingress of contaminants

Accuracy according to DIN 878

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
