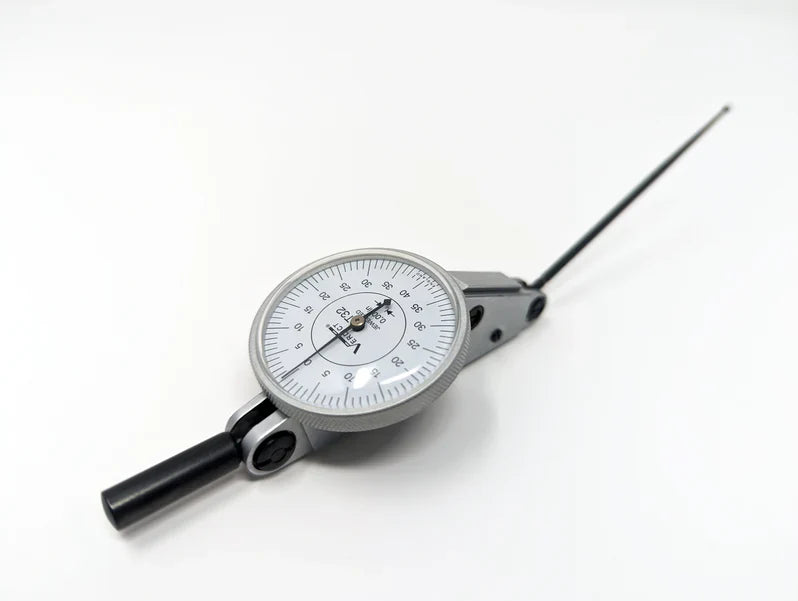

T-30 Worm mechanism. Clamping facilities by means of dovetail or end spigot. Dial rotates for zero setting. Automatic reversal movement. Jewelled mechanism. Stylus swivels through an arc of 180 degrees. Unidirectional hand travel. Lever pivots are mounted in long life ball bearings. Imperial instruments fitted with 1/4 inch diameter spigot (metric 4mm)
-
type Horizontal
-
range 2.0mm
-
display type Non-Digital
-
graduations 0.02mm
-
bezel dia 35mm
-
measuring units Metric
-
scale 0-1.0-0
-
contact point thread 10BA
-
brand Verdict
- Stylus Length 81.18mm
