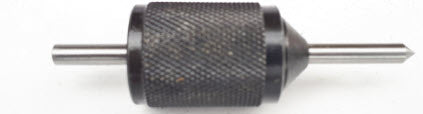

Perfect center hole alignment for all hole sizes within the range of the punch. Accommodates itself automatically to transfer center holes accurately. Perfect hole center alignmnet which has a hardened guide cone is placed into the clean edge of the hole to be transferred. Spring loaded knurled body is pushed against the face of the work piece, perpendicular to the center line of the hole. Replaces different sized regular transfer punches. Precisely ground
Diameter: 3/16"
L: 3-1/8"
For 1/4 ~ 3/4" holes (In practice cone may be closer to .65" diameter )
Runout: 0.0012"
