Model A-10 Concentricity Gauge
Model Description: Basic Single Gage / 3-25mm / Standard Carrier A-10 Standard Concentricity Gage, Accuracy ≤ 5µm (.0002”) A-10P Precision Gold Concentricity Gage, Accuracy ≤ 2µm (.00008”) Specifications: Part Diameter Capacity: 1/8" to 1" (3mm to 25mm) Diameter Minimum 1/24" (1mm) or less with Zero Style Rollers Part Length Capacity: 0.06" – 3" (1.5 – 76 mm) Gage Length: 8.5" (216mm) Gage Width: 4.5" (114mm) Gage Height: 6" appx. (152 mm) Accurate and reliable measurements are a key factor in today's competitive manufacturing environment. Universal Punch's patented Concentricity Gaging Systems offer less than 2 microns accuracy that has proven results in a variety of industrial applications. Continuous improvements to its modular design adapts to customer requirements and provides the flexibility necessary for maintaining quality. There are two classifications calibrated and directly traceable to (N.I.S.T.). Standard Black Gages are guaranteed to be better than ≤ 4µm (.00016") accuracy. Precision Gold Gages are guaranteed better than ≤ 2µm (.00008”) accuracy.
Zero Plain Rollers
For Block Size -10 models, Zero Plain Rollers may be used to decrease the capacity diameter minimum to nearly zero in/mm.
Features
- Adjustable multi-position top arm yoke assembly offers a variety of clamping pressures and positions to accommodate a range of part diameter sizes.
- All standard indicator carriers have fine adjustment screws that provide accurate indicator probe positioning, zeroing and provide smooth indicator movement to increase measuring performance and accuracy.
- All gages come standard with a manual drive timing belt pulleys system that provides a constant smooth part rotation when inspecting. (Optional) 110/220 volts AC/DC fixed speed or variable speed motorized drive systems are available.
- All carriers offer a variety of positions that move along the Z-axis of the carrier rod assembly. The carrier tilts 90 degrees to facilitate easy loading and unloading of parts.
Part Diameter Capacity: 1/8″ to 1″ (3mm to 25mm)
Diameter Minimum 1/24″ (1mm) or less with Zero Style Rollers
Part Length Capacity: 0.06″ – 3″ (1.5 – 76 mm)
Gage Length: 8.5″ (216mm)
Gage Width: 4.5″ (114mm)
Gage Height: 6″ appx. (152 mm)
A-10 Universal Punch Concentricity Gages are comprised of three main components for assembly:
- Standard or Precision Accuracy (selectable below)
- Main Rollers (selectable below)
- Indicator(s) and/or other accessories (linked below)

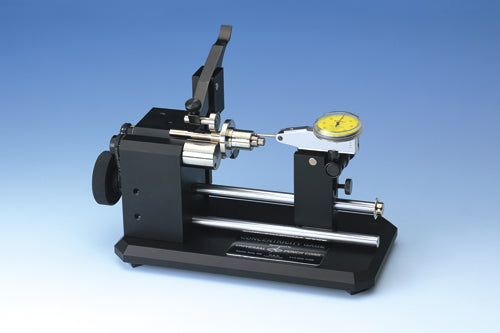

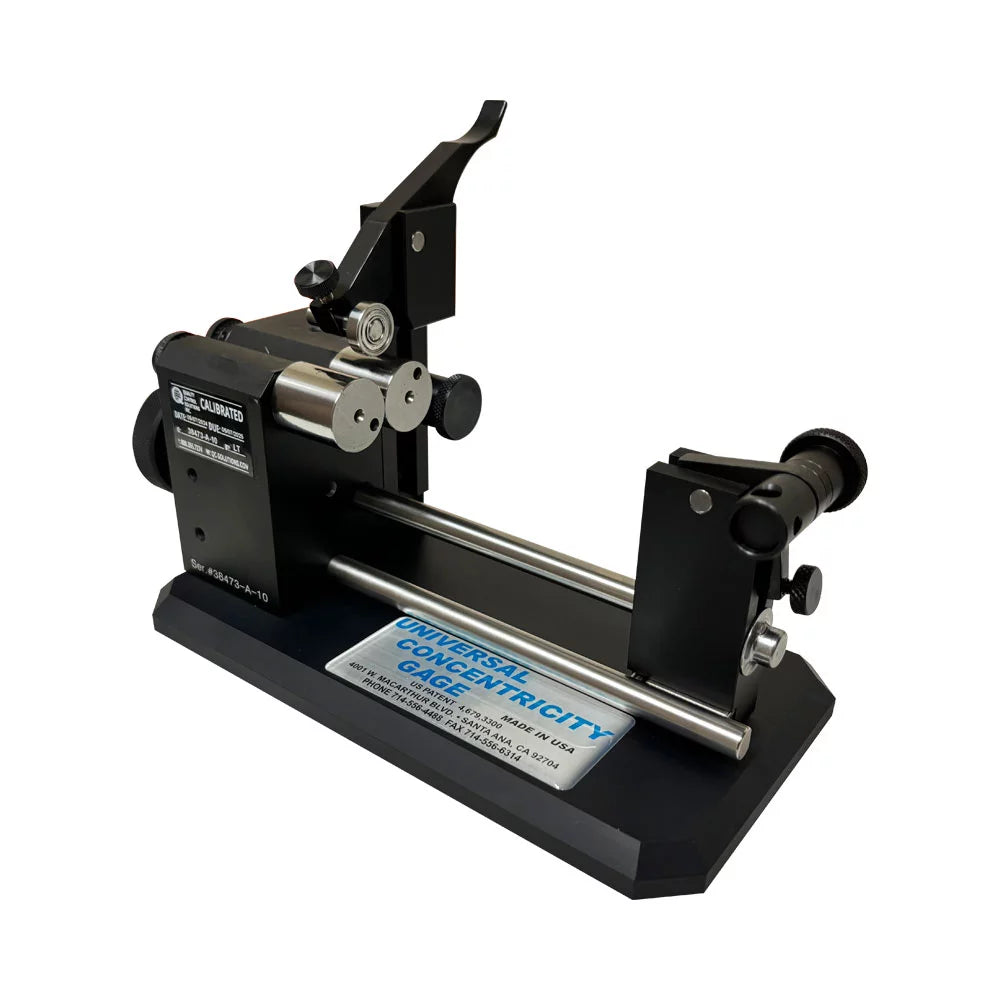

Universal Punch concentricity gauges come with everything pictured EXCEPT the indicators and the main rollers. If you have any questions please don’t hesitate to reach out to us!
Main Rollers must be ordered Separately as well as Indicator
