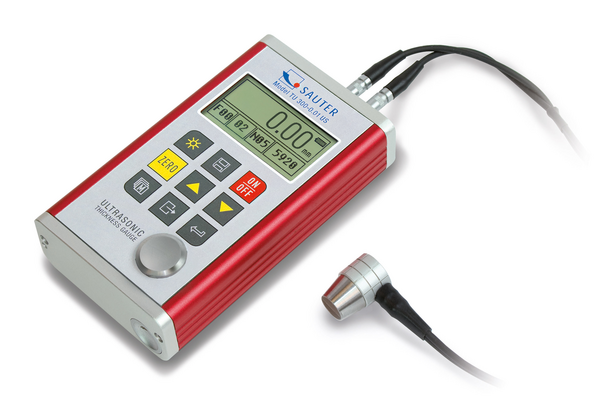

- External measuring head for difficult-to-access measuring points
- Base plate for adjustment included
- USB data interface, as standard
- Scan mode (10 measurements per sec.) or single point measuring mode possible
- Internal memory for up to 20 files (with up to 100} values per file)
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
- Selectable measuring units: mm inch

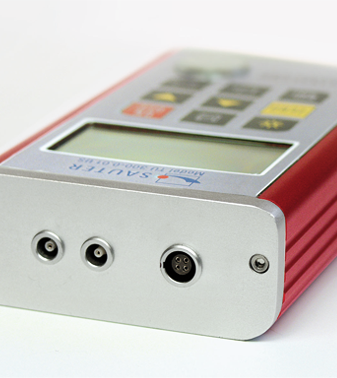

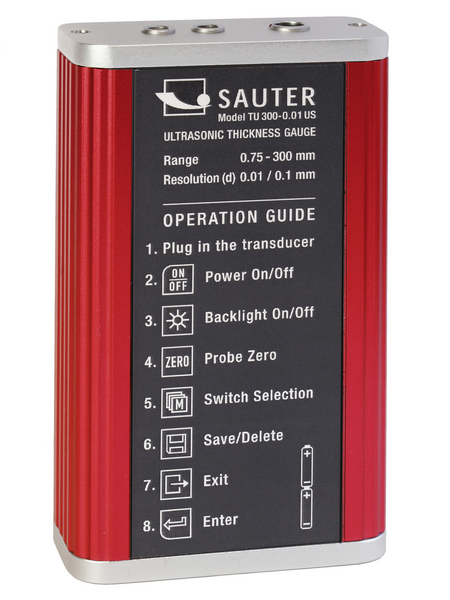

- Robust metal housing
- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 6 mm) and ultrasound contact gel
- Delivered in a robust carrying case
-
Material thickness pulse-echo [Max] (mm) 80 mm Material thickness pulse-echo [Min] (mm) 0,75 mm Measuring range pulse-echo 0,75 mm – 80 mm Readability material thickness [d] (mm) 0,01 mm Tolerance (% of [Max]) 0,5% Units mm, inch Speed of sound [Max] (m/s) 9999 m/s Speed of sound [Min] (m/s) 1000 m/s Speed of sound 1000 m/s – 9999 m/s Measuring head measuring frequency 7 MHz Battery 2×1.5 V AA Material housing cast aluminium Dimensions completely mounted (W×D×H) 130×76×32 mm Interfaces USB-Device Cable length 0,9 m
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
