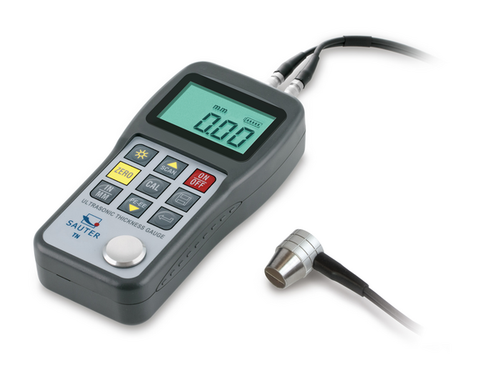

- External measuring head
- Scan mode (10 measurements per sec.) or single point measuring mode possible
- Internal memory for up to 20 files (with up to 100} values per file)
- Selectable measuring units: mm inch

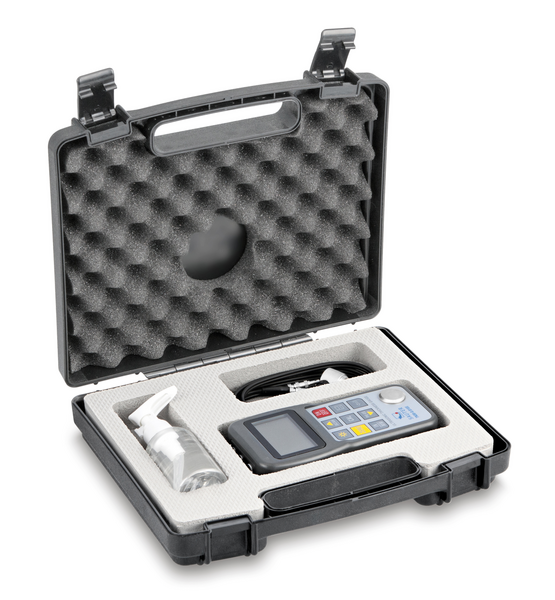

- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel
- Delivered in a robust carrying case
| Material thickness pulse-echo [Max] (mm) | 80 mm |
| Material thickness pulse-echo [Min] (mm) | 0,75 mm |
| Measuring range pulse-echo | 0,75 mm – 80 mm |
| Readability material thickness [d] (mm) | 0,1 mm |
| Tolerance (% of [Max]) | 0,5% |
| Units | mm, inch |
| Speed of sound [Max] (m/s) | 9999 m/s |
| Speed of sound [Min] (m/s) | 1000 m/s |
| Speed of sound | 1000 m/s – 9999 m/s |
| Measuring head measuring frequency | 7 MHz |
| Battery | 2×1.5 V AA |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 150×74×32 mm |
| Cable length | 0,9 m |
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
