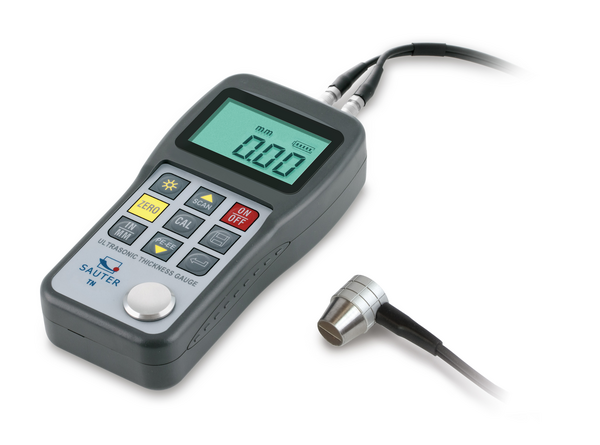

Ultrasonic Thickness Gauge external TN 230-0.1US 1,2 - 230mm 0.1mm 5 MHz Ø10mm

Roll over image to zoom in Click on image to zoom

Ultrasonic Thickness Gauge external TN 230-0.1US 1,2 - 230mm 0.1mm 5 MHz Ø10mm

Name: Ultrasonic Thickness Gauge external TN 230-0.1US 1,2 - 230mm 0.1mm 5 MHz Ø10mm
Brand: Kern
SKU: TN 230-0.1US
Price: 695.0 EUR
Availability: InStock

KernSKU: TN 230-0.1US

Price:

€695.00

Quantity:

External measuring head

Scan mode (10 measurements per sec.) or single point measuring mode possible
Internal memory for up to 20 files (with up to 100} values per file)
Selectable measuring units: mm inch
Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel

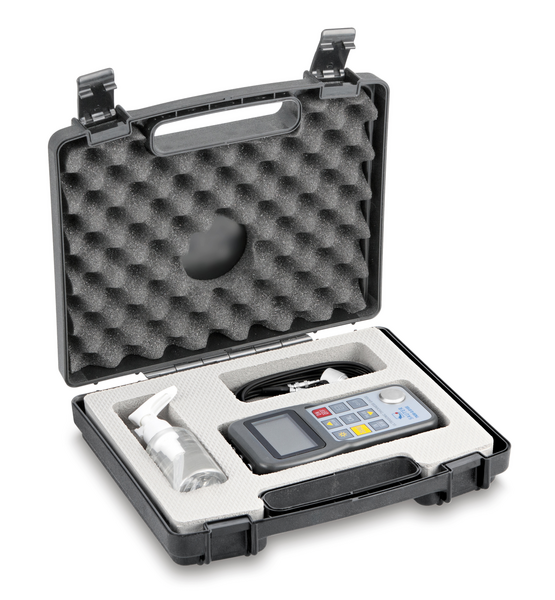

Delivered in a robust carrying case

Material thickness pulse-echo [Max] (mm)	230 mm
Material thickness pulse-echo [Min] (mm)	1,2 mm
Measuring range pulse-echo	1,2 mm – 230 mm
Readability material thickness [d] (mm)	0,1 mm
Tolerance (% of [Max])	0,5%
Units	mm, inch
Speed of sound [Max] (m/s)	9999 m/s
Speed of sound [Min] (m/s)	1000 m/s
Speed of sound	1000 m/s – 9999 m/s
Measuring head measuring frequency	5 MHz
Battery	2×1.5 V AA
Material housing	plastic
Dimensions completely mounted (W×D×H)	150×74×32 mm
Cable length	0,9 m
