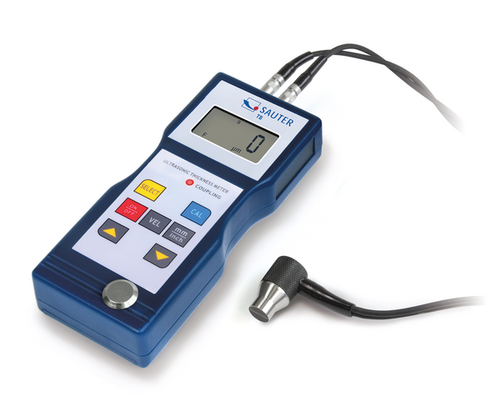

Ultrasonic Thickness Gauge external TB 200-0.1US Material thickness pulse-echo [Max] (mm) 200 mm
Ultrasonic Thickness Gauge external TB 200-0.1US Material thickness pulse-echo [Max] (mm) 200 mm
Roll over image to zoom in Click on image to zoom
Ultrasonic Thickness Gauge external TB 200-0.1US Material thickness pulse-echo [Max] (mm) 200 mmUltrasonic Thickness Gauge external TB 200-0.1US Material thickness pulse-echo [Max] (mm) 200 mm

Ultrasonic Thickness Gauge external TB 200-0.1US Material thickness pulse-echo [Max] (mm) 200 mm

Kern SKU: TB 200-0.1US
Price: €399.00 Excluding VAT
  • External measuring head for difficult-to-access measuring points
  • Base plate for adjustment included
  • Auto-Power-Off
  • Selectable measuring units: mm inch
  • Scope of delivery: Operating instructions, batteries, external measuring head (∅ 8 mm) and ultrasound contact gel
  • Delivered in a robust carrying case

  • Material thickness pulse-echo [Max] (mm) 200 mm
    Material thickness pulse-echo [Min] (mm) 1,5 mm
    Measuring range pulse-echo 1,5 mm – 200 mm
    Readability material thickness [d] (mm) 0,1 mm
    Tolerance (% of [Max]) 0,5%
    Units mm, inch
    Speed of sound [Max] (m/s) 9999 m/s
    Speed of sound [Min] (m/s) 500 m/s
    Speed of sound 500 m/s – 9999 m/s
    Measuring head measuring frequency 5 MHz
    Battery 4×1.5 V AA
    Material housing plastic
    Dimensions completely mounted (W×D×H) 161×69×32 mm
    Cable length 0,9 m

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
