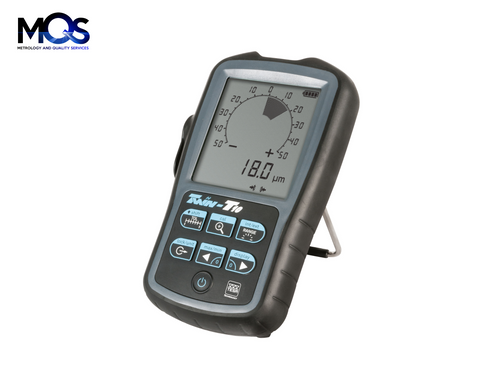

TESA 04430013 TWIN-T10 Digital Display Unit

Tesa TWIN-T10 digital display unit 04430013

Portable, reliable and robust stand-alone instrument.
The TWIN-T10 offers excellent readability of the analogue and numerical indication: the studied shape of the analogue scale allows a detailed visualization of the micro variations during the measurement, while the high contrast display, associated with the large size of the numerical indication contributes to an error-free, immediate and clear reading for the operator.

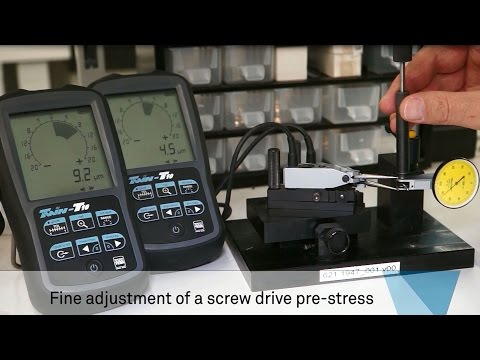

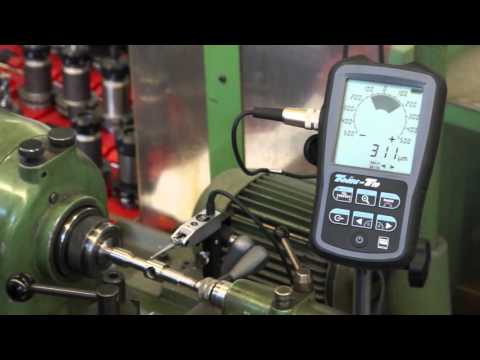

This instrument is perfect for measurements of form or orientation tolerances in the workshop, in measuring stations on the machine or in production on machine tools.

• DISPLAY
- Large, high-contrast screen for clear and immediate reading
- Retractable feet
- Back mounting

• USE
- Light and portable
- Robust for use in any kind of conditions, even the most extreme ones

• AUTONOMY
- Powered by standard AA batteries only
- Low consumption allows a long autonomy

• FUNCTIONS
- Metric or imperial unit
- Identification of values out of tolerance
- Storage of MAX, MIN or MAX-MIN values during dynamic measurement
- Combines analogue display and analogue indication
- Zeroing of the display facilitating measurements by comparison
- Special ZOOM display allowing a more detailed visualization of the analogue scale to facilitate precise adjustment
- Up to 7 measuring ranges or automatic switching according to the measured value

• Input: 1 probe input
• Range: ±5, ±20, ± 50, ± 200, ± 500, ± 2000, ± 5000 µm
• Resoltion: 0.1µm
• Accuracy (At 20°C and relative humidity of ≤ 50 %): 1% ± 0.1µm
• IP rating: IP63
• Response time at 20°C and relative humidity of ≤ 50 %:
  • Response time ≤ 100ms
  • Digital display hold ≥ 100ms
• Data output: TLC
