Features:

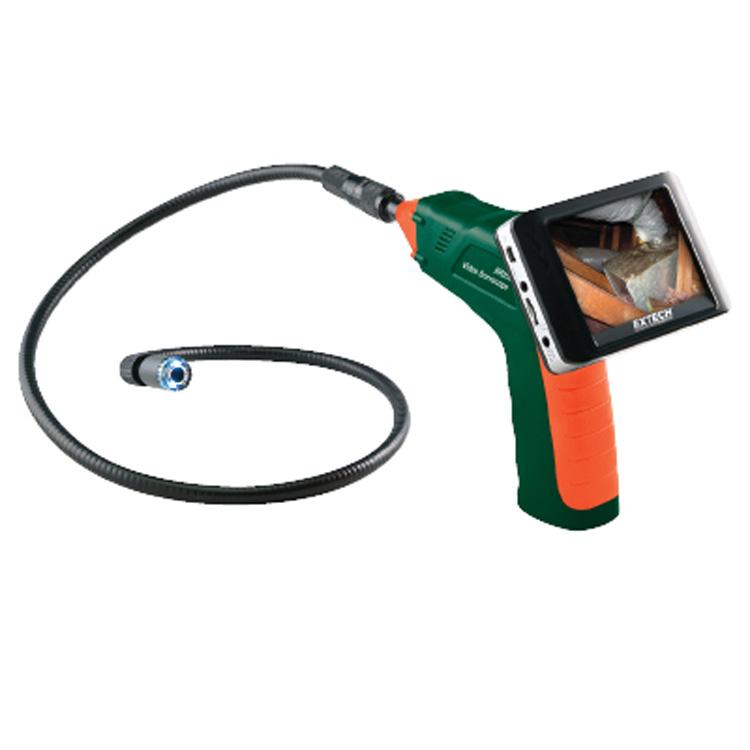

- 2.4GHz wireless inspection camera with Recording Monitor
- Allows for easy visual inspections in hard to reach areas.
- Mini water-proof camera with 1m (3 inch) flexible extended tube
- Night Vision Range:1.5m
- Waterproof Level: IP67 with Underwater
- 3.5" TFT-LCD wireless monitor with rechargeable Li-battery
- Lightweight, handhold design for easily find, diagnose and solve problems
- 3 useful accessories includes: hook, mirror and magnet
Camera specifications:
- Image Sensor: CMOS
- Total Pixels: 704*576 (PAL); 712*486(NTSC)
- Horizontal View Angle: 50 degree
- Transmission Frequency: 2468MHz
- Minimum Illumination: 0 Lux
- Modulation Type: FM
- Bandwidth: 25MHz
- Power Supply: 4 x AA
- Dimensions (W x D x H): 186 x 145 x 41(mm) (Exclude Flexible Tube)
- Weight(about): 530g
Monitor parameters:
- LCD Screen Type: 3.6" TFT-LCD
- Effective Pixels: 480 x 240
- Video System: PAL/NTSC
- Transmission Frequency: 2468MHz
- Consumption Current (Max): 450mA
- Video Output Level: 0.9-1.3VP-P 75ohm
- Dimensions (W x D x H): 100 x 70x 30(mm)
- Weight(About): 140g
- Operating Temperature: -10 to +50 degree/+14 F to +122 F
- Operating Humidity (Max.): 15 to 85%RH
Specifications
- Length: 990mm
