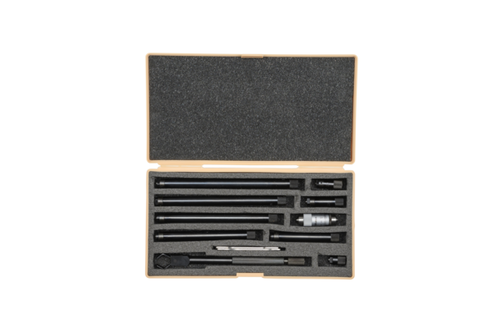

Tubular Inside Micrometer with Extension 40-300mm 139-203
Tubular Inside Micrometer with Extension 40-300mm 139-203
Roll over image to zoom in Click on image to zoom
Tubular Inside Micrometer with Extension 40-300mm 139-203Tubular Inside Micrometer with Extension 40-300mm 139-203

Tubular Inside Micrometer with Extension 40-300mm 139-203

Mitutoyo SKU: 139-204
List price: €586.00 Offer price: €454.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Mitutoyo; Inside (Stick) Micrometer

This is an extension pipe type inside micrometer that offers you the following benefits:

  • Interchangeable extensions in a hollow pipe design.

Features

  • Digital/Analog: Analog
  • Inch-Metric: Metric
    Range: 40 - 300 mm
  • Measuring span: 10 mm
  • Graduation: 0.01 mm
  • Spindle feed error: 6 µm
  • Limit of error: ±(6+max. measurement length/50) µm
  • Scale: Thimble and sleeve satin chrome finish, ø18 mm ø13 mm (139-203, 139-204)
  • Measuring spindle: Spindle pitch 0.5 mm
  • Measuring face: Carbide
  • Measuring method: 2-point
  • Extension rods: 8 (10, 20, 30, 60, 90, 110, 120, 130 mm)

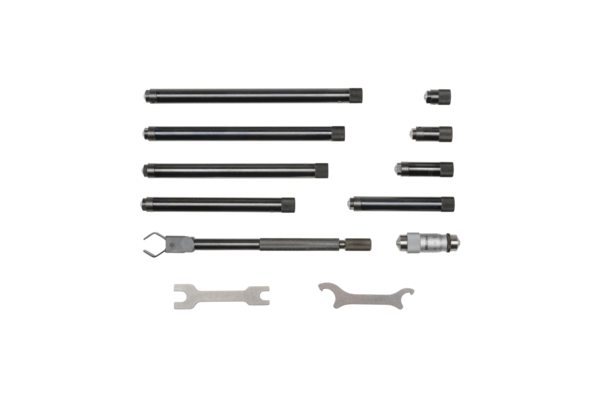

  • Delivered: Including box, key, extensions, micrometer head
  • Mass: 240 g
