Tubular Inside Micrometer with Extension 40-200" 140-164

Roll over image to zoom in Click on image to zoom

Tubular Inside Micrometer with Extension 40-200" 140-164

Name: Tubular Inside Micrometer with Extension 40-200" 140-164
Brand: Mitutoyo
SKU: 140-164
Price: 3904.0 EUR
Availability: InStock

MitutoyoSKU: 140-164

Price:

€3,904.00 €5,204.82

Quantity:

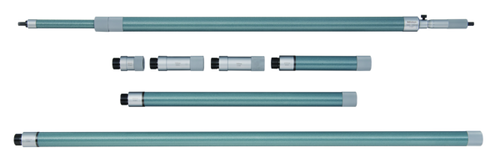

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	140-164
Measuring Range	40-200"
Unit of Measurement	Inch
Display Type	Analogue
Graduation on Thimble	.001"
Micrometer Head Stroke	2"
Main Unit	40-42"
Calibration Code	CAL8 B1

Digital/Analog:	Analog
Inch-Metric:	Inch
Range:	40 - 200 "
Measuring span:	2"
Graduation:	0.001"
Limit of error:	±(0,00035+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:	Thimble and sleeve satin chrome finish, ø21 mm
Measuring spindle:	Spindle pitch 0,635 mm
Measuring face:	Carbide
Extension rods:	8 (2, 4 (2 pcs.), 8, 20, 40" (3 pcs.))
Delivered:	Including box, key
Delivered:	Including box, spanner, extension rods (8 pcs.), micrometer head
Spindle feed error:	0.0003 inch
Mass:	9000 g
