Tubular Inside Micrometer with Extension 40-120" 140-162
Tubular Inside Micrometer with Extension 40-120" 140-162
Tubular Inside Micrometer with Extension 40-120" 140-162
Roll over image to zoom in Click on image to zoom
Tubular Inside Micrometer with Extension 40-120" 140-162Tubular Inside Micrometer with Extension 40-120" 140-162Tubular Inside Micrometer with Extension 40-120" 140-162

Tubular Inside Micrometer with Extension 40-120" 140-162

Mitutoyo SKU: 140-162
List price: €3,247.00 Offer price: €2,516.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
40 - 120 "
Measuring span:
2"
Graduation:
0.001"
Limit of error:
±(0,00035+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring spindle:
Spindle pitch 0,635 mm
Measuring face:
Carbide
Extension rods:
6 (2, 4 (2 pcs.), 8, 20, 40")
Delivered:
Including box, key
Delivered:

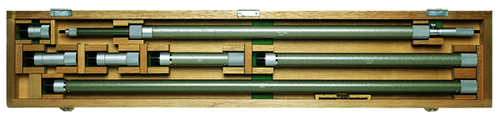

Including box, spanner, extension rods (6 pcs.), micrometer head
Spindle feed error:
0.0003 inch
Mass:
5400 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
