Tubular Inside Micrometer with Extension 4-68" 139-181
Tubular Inside Micrometer with Extension 4-68" 139-181
Tubular Inside Micrometer with Extension 4-68" 139-181
Roll over image to zoom in Click on image to zoom
Tubular Inside Micrometer with Extension 4-68" 139-181Tubular Inside Micrometer with Extension 4-68" 139-181Tubular Inside Micrometer with Extension 4-68" 139-181

Tubular Inside Micrometer with Extension 4-68" 139-181

Mitutoyo SKU: 139-181
List price: €1,088.00 Offer price: €843.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

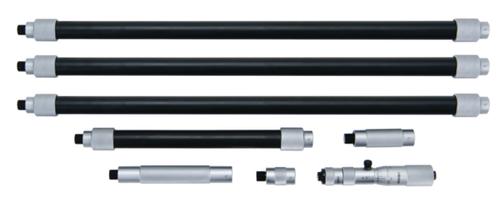

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.

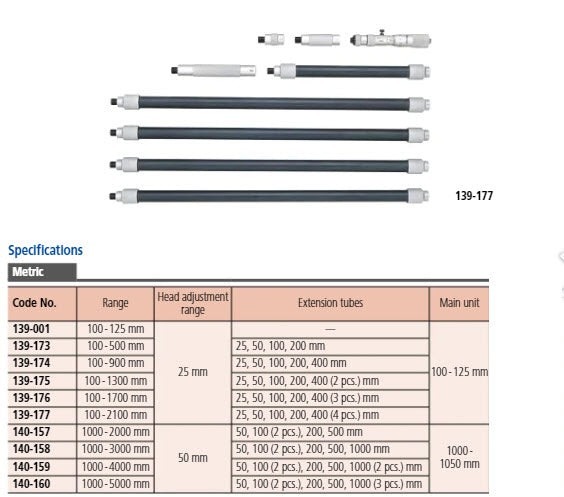

Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
4 - 68 "
Measuring span:
1"
Graduation:
0.001"
Limit of error:
±(0,00015+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
ø13 mm (139-203, 139-204)
Measuring spindle:
Spindle pitch 0.025" mm
Measuring face:
Carbide
Measuring method:
2-point
Extension rods:
7 (1, 2, 4, 8, 16" (3 pcs.))
Delivered:
Including box, key, extensions, micrometer head
Delivered:
Including box, spanner, extension rods (7 pcs.), micrometer head 139-002
Spindle feed error:
0.00015 inch
Mass:
1390 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
