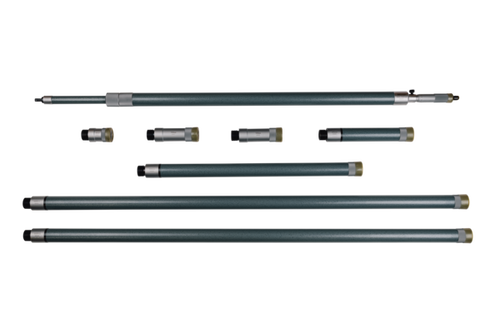

Mitutoyo; Inside (Stick) Micrometer
This is an extension pipe type inside micrometer that offers you the following benefits:
- Interchangeable extensions in a hollow pipe design.
Features
- Digital/Analog: Analog
- Inch-Metric: Metric
Range: 1000 - 4000 mm
- Measuring span: 50 mm
- Graduation: 0.01 mm
- Spindle feed error: 6 µm
- Limit of error: ±(7+max. measurement length/50) µm
- Scale: Thimble and sleeve satin chrome finish, ø18 mm ø13 mm (139-203, 139-204)
- Measuring spindle: Spindle pitch 0.5 mm
- Measuring face: Carbide
- Measuring method: 2-point
- Extension rods: 7 (50, 100 (2 pcs.), 200, 500, 1,000 mm (2 pcs.))

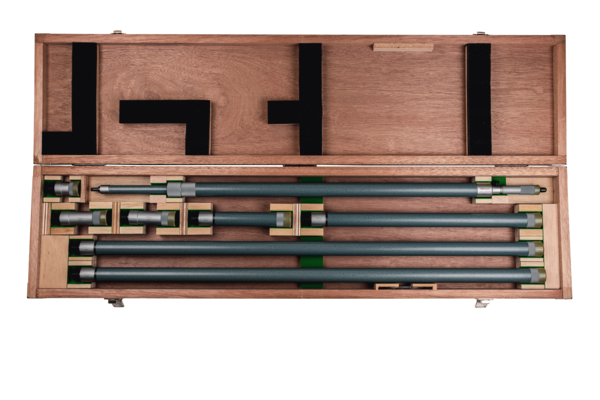

- Delivered: Including box, key, extensions, micrometer head
- Mass: 6700 g
All images are for representation only.
