Tubular Inside Micrometer with Extension 100-500mm 139-173

Roll over image to zoom in Click on image to zoom

Tubular Inside Micrometer with Extension 100-500mm 139-173

Name: Tubular Inside Micrometer with Extension 100-500mm 139-173
Brand: Mitutoyo
SKU: 139-173
Price: 539.29 EUR
Availability: InStock

MitutoyoSKU: 139-173

Price:

€539.29 €738.75

Quantity:

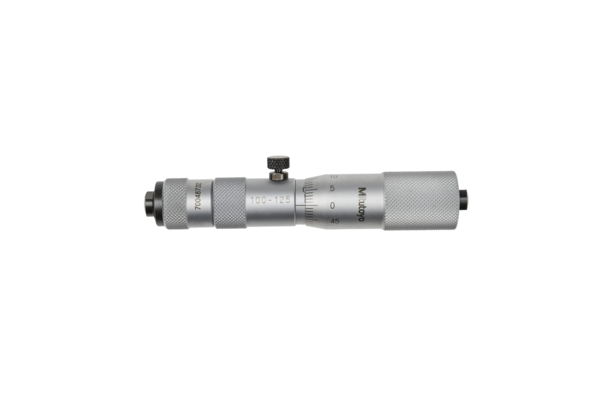

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.

Product Information
Part Number	139-173
Measuring Range	100-500mm
Unit of Measurement	Metric
Display Type	Analogue
Graduation on Thimble	.01mm
Micrometer Head Stroke	25mm
Main Unit	100-125mm
Calibration Code	CAL8 B1

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	100 - 500 mm
Measuring span:	25 mm
Graduation:	0.01 mm
Spindle feed error:	3 µm
Limit of error:	±(3+number of rods+max. measurement length/50) µm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm ø13 mm (139-203, 139-204)
Measuring spindle:	Spindle pitch 0.5 mm
Measuring face:	Carbide
Measuring method:	2-point
Extension rods:	4 (25, 50, 100, 200 mm)

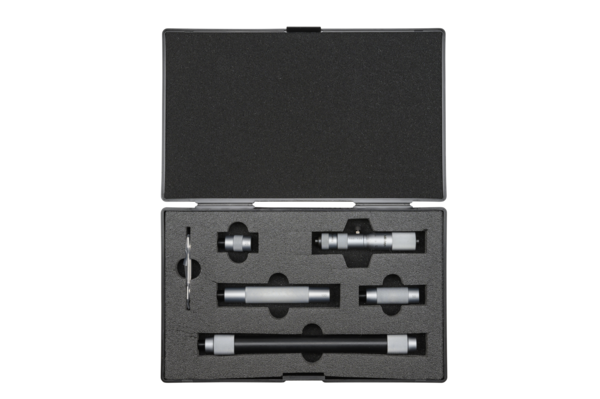

Delivered:	Including box, key, extensions, micrometer head
Delivered:	Including box, spanner, extension rods (4 pcs.), micrometer head 139-001
Mass:	490 g
