Welcome to Inspection Equipment, your one-stop online store for metrology products. Phone (353) 1-4502666, sales @inspection.ie

Tubular Inside Micrometer, Hardened Face 50-300mm 137-202

Roll over image to zoom in Click on image to zoom

Tubular Inside Micrometer, Hardened Face 50-300mm 137-202

Name: Tubular Inside Micrometer, Hardened Face 50-300mm 137-202
Brand: Mitutoyo
SKU: 137-202
Price: 287.0 EUR
Availability: InStock

MitutoyoSKU: 137-202

Price:

€287.00 €383.00

Quantity:

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available see 137-207

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	137-202
Measuring Range	50-300mm
Unit of Measurement	Metric
Display Type	Analogue
Graduation on Thimble	.01mm
Micrometer Head Stroke	13mm

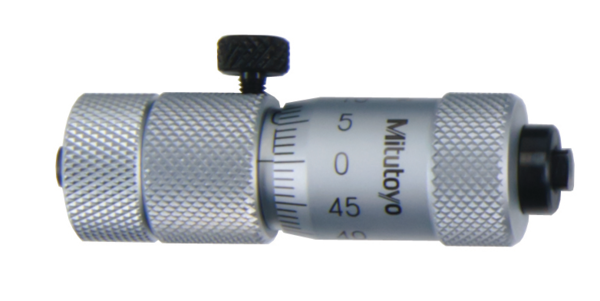

Main Unit	50-63mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	50 - 300 mm
Measuring span:	13 mm
Graduation:	0.01 mm
Spindle feed error:	3 µm
Limit of error:	±(3+number of rods+max. measurement length/50) µm
Scale:	Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:	Spindle pitch 0,5 mm
Measuring face:	Hardened steel
Measuring method:	2-point

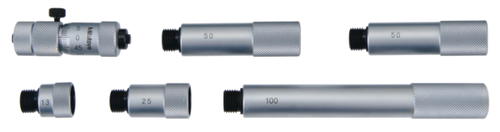

Extension rods:	5 (13, 25, 50 (2 pcs.), 100 mm)
Delivered:	Including box, key, micrometer head
Delivered:	Including box, spanner, extension rods (5 pcs.), micrometer head 137-011
Mass:	305 g

Tubular Inside Micrometer, Hardened Face 50-300mm 137-202
