Tubular Inside Micrometer, Hardened Face 50-1500mm 137-205

Roll over image to zoom in Click on image to zoom

Tubular Inside Micrometer, Hardened Face 50-1500mm 137-205

Name: Tubular Inside Micrometer, Hardened Face 50-1500mm 137-205
Brand: Mitutoyo
SKU: 137-205
Price: 610.46 EUR
Availability: InStock

MitutoyoSKU: 137-205

Price:

€610.46 €836.25

Quantity:

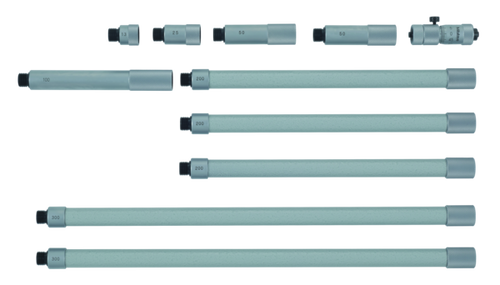

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available.

Product Information
Part Number	137-205
Measuring Range	50-1500mm
Unit of Measurement	Metric
Display Type	Analogue
Graduation on Thimble	.01mm
Micrometer Head Stroke	13mm

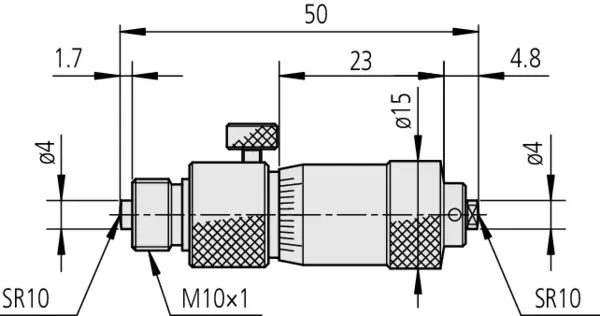

Main Unit	50-63mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	50 - 1,500 mm
Measuring span:	13 mm
Graduation:	0.01 mm
Spindle feed error:	3 µm
Limit of error:	±(3+number of rods+max. measurement length/50) µm
Scale:	Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:	Spindle pitch 0,5 mm
Measuring face:	Hardened steel
Measuring method:	2-point

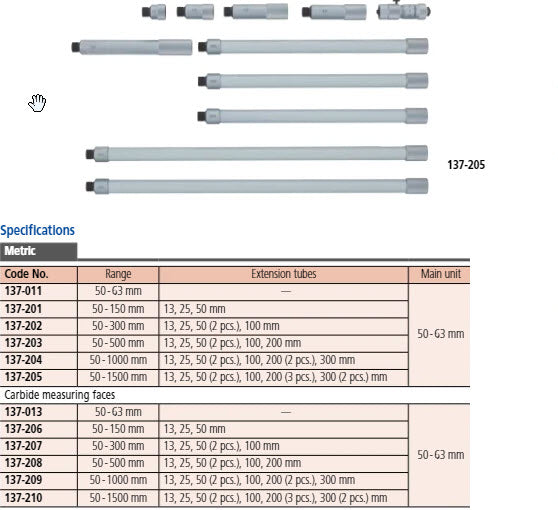

Extension rods:	10 (13, 25, 50 (2 pcs.), 100, 200 (3 pcs.), 300 mm (2 pcs.))
Delivered:	Including box, key, micrometer head
Delivered:	Including box, spanner, extension rods (10 pcs.), micrometer head 137-011
Mass:	1225 g
