Tubular Inside Micrometer, 50-1000mm 137-209 Carbide Measuring Faces

Roll over image to zoom in Click on image to zoom

Tubular Inside Micrometer, 50-1000mm 137-209 Carbide Measuring Faces

Name: Tubular Inside Micrometer, 50-1000mm 137-209 Carbide Measuring Faces
Brand: Mitutoyo
SKU: 137-209
Price: 577.0 EUR
Availability: InStock

MitutoyoSKU: 137-209

Price:

€577.00 €770.00

Quantity:

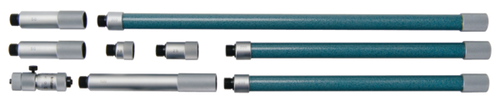

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical guage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide Measuring Faces.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	137-209
Measuring Range	50-1000mm
Unit of Measurement	Metric
Display Type	Analogue
Graduation on Thimble	.01mm
Micrometer Head Stroke	13mm

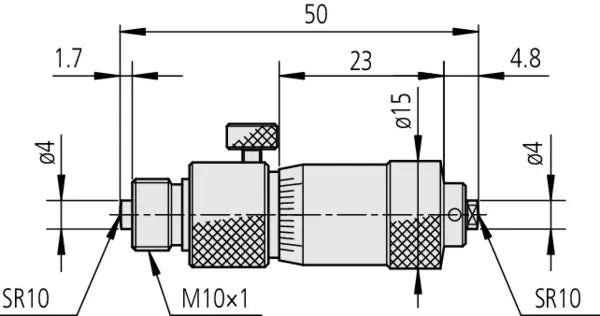

Main Unit	50-63mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	50 - 1,000 mm
Measuring span:	13 mm
Graduation:	0.01 mm
Spindle feed error:	3 µm
Limit of error:	±(3+number of rods+max. measurement length/50) µm
Scale:	Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:	Spindle pitch 0,5 mm
Measuring face:	Carbide Measuring Faces
Measuring method:	2-point

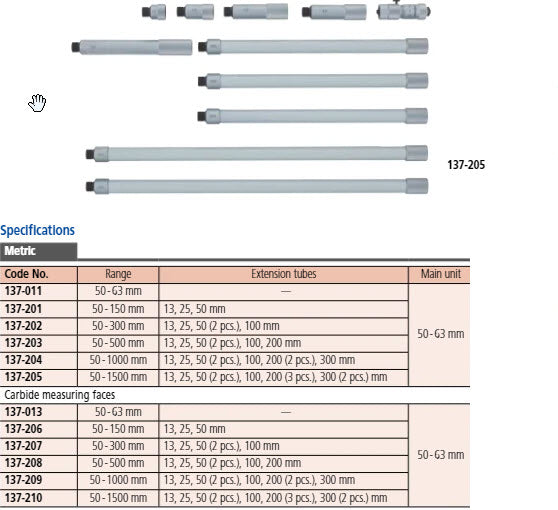

Extension rods:	8 (13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300 mm)
Delivered:	Including box, key, micrometer head
Delivered:	Including box, spanner, extension rods (8 pcs.), micrometer head 137-011
Mass:	845 g
