Tubular Inside Micrometer, Hardened Face 50-1000mm 137-204

Roll over image to zoom in Click on image to zoom

Tubular Inside Micrometer, Hardened Face 50-1000mm 137-204

Name: Tubular Inside Micrometer, Hardened Face 50-1000mm 137-204
Brand: Mitutoyo
SKU: 137-204
Price: 463.55 EUR
Availability: InStock

MitutoyoSKU: 137-204

Price:

€463.55 €635.00

Quantity:

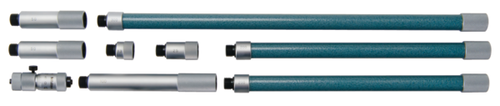

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical guage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available.

Product Information
Part Number	137-204
Measuring Range	50-1000mm
Unit of Measurement	Metric
Display Type	Analogue
Graduation on Thimble	.01mm
Micrometer Head Stroke	13mm

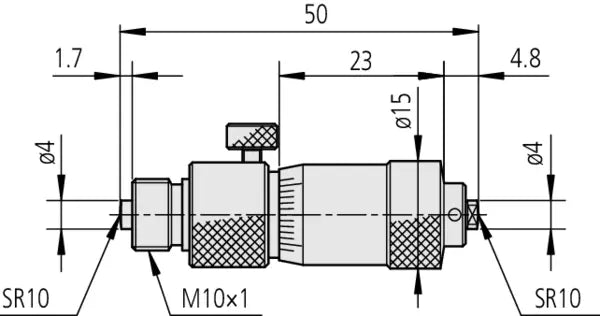

Main Unit	50-63mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	50 - 1,000 mm
Measuring span:	13 mm
Graduation:	0.01 mm
Spindle feed error:	3 µm
Limit of error:	±(3+number of rods+max. measurement length/50) µm
Scale:	Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:	Spindle pitch 0,5 mm
Measuring face:	Hardened steel
Measuring method:	2-point

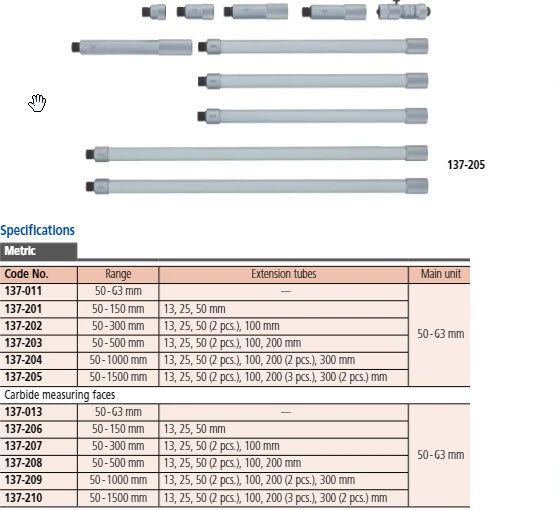

Extension rods:	8 (13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300 mm)
Delivered:	Including box, key, micrometer head
Delivered:	Including box, spanner, extension rods (8 pcs.), micrometer head 137-011
Mass:	845 g
