Tubular Inside Micrometer, Hardened Face 2-40" 137-214

Mitutoyo SKU: 137-214
List price: €622.00 Offer price: €482.00 Excluding VAT
This is an extension rod type inside micrometer that offers you the following benefits:

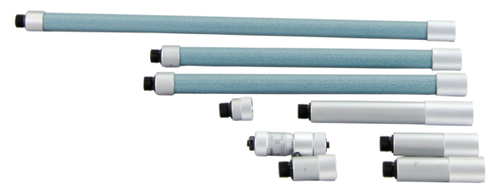

  • Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
  • Carbide measuring faces are available.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
2 - 40 "
Measuring span:
0.5"
Graduation:
0.001"
Limit of error:
±(0,00015+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:
Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:
Spindle pitch 0,025" mm
Measuring face:
Hardened steel
Measuring method:
2-point
Extension rods:
8 (0.5, 1, 2 (2 pcs.), 4, 8 (2 pcs.), 12")
Delivered:
Including box, key, extensions, micrometer head
Delivered:
Including box, spanner, extension rods (8 pcs.), micrometer head 137-012
Spindle feed error:
0.00015 inch
Mass:
845 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
