Tubular Inside Micrometer 9-10" 133-230

Name: Tubular Inside Micrometer 9-10" 133-230
Brand: Mitutoyo
SKU: 133-230
Price: 146.0 EUR
Availability: InStock

MitutoyoSKU: 133-230

Price:

€146.00 €195.00

Quantity:

This is a standard single rod type inside micrometer (individual unit), with the following features:

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

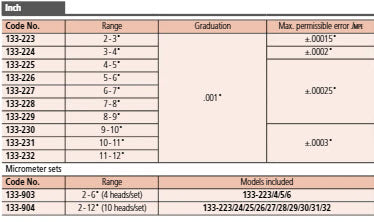

Product Information
Part Number	133-230
Measuring Range	9-10"
Unit of Measurement	Inch
Display Type	Analogue
Type	Tubular Inside Micrometer (Stick Mic)
Graduation on Thimble	.001"

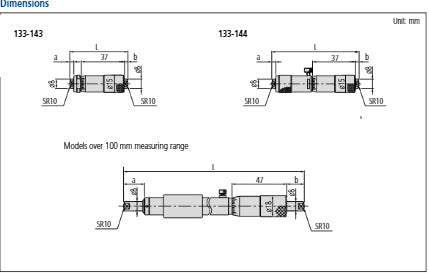

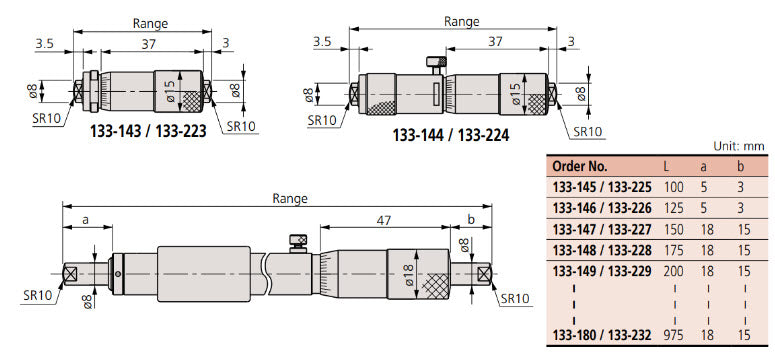

Measurement L	9"
Measurement B	.59"
Measurement A	.71"
Maximum Permissible Error	±.0003"
Calibration Code	CAL8 B1

Digital/Analog:	Analog
Inch-Metric:	Inch
Range:	9 - 10 "
Graduation:	0.001"
Max. Permissible Error J MPE:	±0,0003"
Scale:	Thimble and sleeve satin chrome finish, Ø18 mm
Measuring spindle:	With spindle lock (except 50-75 mm), spindle pitch 0,5 mm
Measuring face:	Carbide tipped
Measuring method:	2-point
Delivered:	Including box, insulation (from 100 mm), key
Delivered:	Including box and spanner
Mass:	210 g
