Tubular Inside Micrometer, 2-12" 137-217 Carbide measuring Faces

Roll over image to zoom in Click on image to zoom

Tubular Inside Micrometer, 2-12" 137-217 Carbide measuring Faces

Name: Tubular Inside Micrometer, 2-12" 137-217 Carbide measuring Faces
Brand: Mitutoyo
SKU: 137-217
Price: 311.16 EUR
Availability: InStock

MitutoyoSKU: 137-217

Price:

€311.16 €426.25

Quantity:

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical gauge rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring Faces

Product Information
Part Number	137-217
Measuring Range	2-12"
Unit of Measurement	Inch
Display Type	Analogue
Graduation on Thimble	.001"
Micrometer Head Stroke	.5"

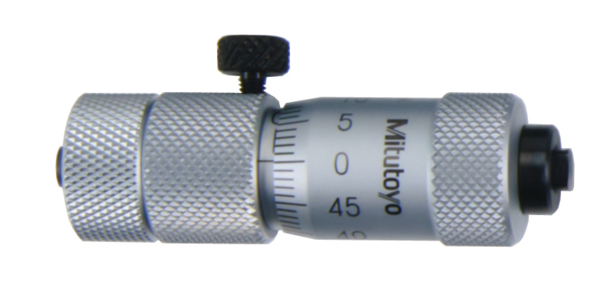

Main Unit	2-2.5"

Digital/Analog:	Analog
Inch-Metric:	Inch
Range:	2 - 12 "
Measuring span:	0.5"
Graduation:	0.001"
Limit of error:	±(0,00015+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:	Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:	Spindle pitch 0,025" mm
Measuring face:	Carbide measuring Faces
Measuring method:	2-point

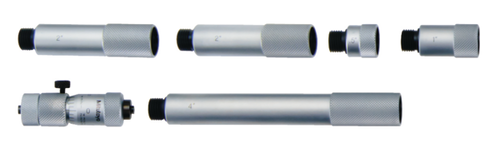

Extension rods:	5 (0.5, 1, 2 (2 pcs.), 4")
Delivered:	Including box, key, extensions, micrometer head
Delivered:	Including box, spanner, extension rods (5 pcs.), micrometer head 137-012
Spindle feed error:	0.00015 inch
Mass:	305 g
