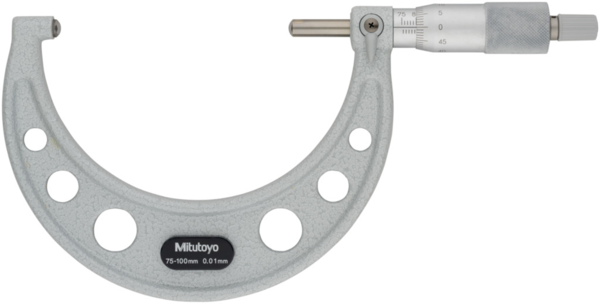

Tube Micrometer, Spherical Anvil/Spindle 75-100mm 115-218

Roll over image to zoom in Click on image to zoom

Tube Micrometer, Spherical Anvil/Spindle 75-100mm 115-218

Name: Tube Micrometer, Spherical Anvil/Spindle 75-100mm 115-218
Brand: Mitutoyo
SKU: 115-218
Price: 159.0 EUR
Availability: InStock

MitutoyoSKU: 115-218

Price:

€159.00 €205.00

Quantity:

Mitutoyo; Tube Micrometer

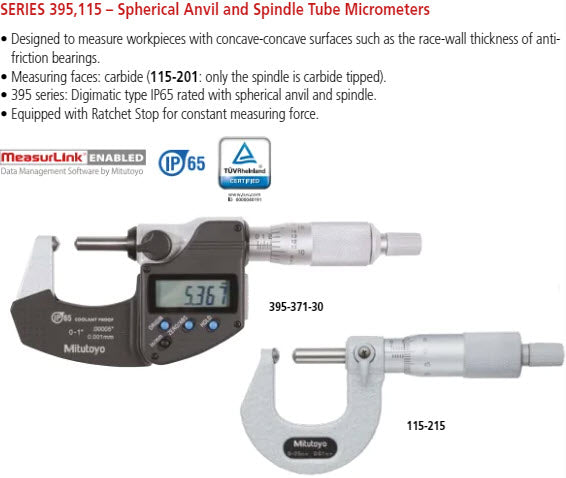

This Tube Micrometer allows you to measure curved surfaces such as the wall thickness of tubes, bearings and rings.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

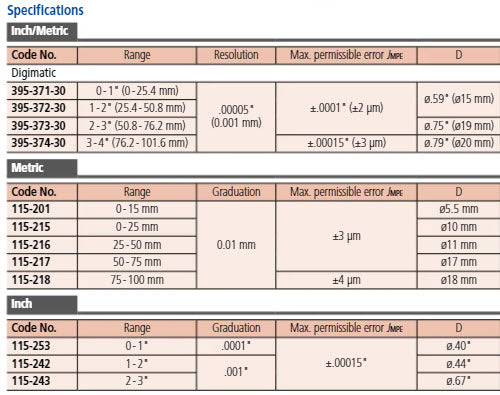

Product Information
Part Number	115-218
Measuring Range	75-100mm
Accuracy	["±.004mm"]
Graduation	.01mm
Accuracy	+/-.004mm
Unit of Measurement	Metric
Measuring Force	5-10N
Type	Tube
Constant Force Device	Ratchet Stop
Anvils & Spindle Design	Spherical Anvil & Spherical Spindle Type C (S-S)
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	75 - 100 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm

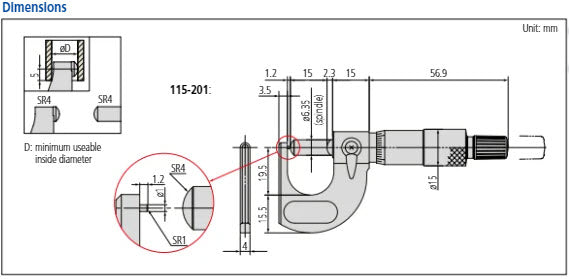

Measuring face:	Spindle and anvil: carbide-tipped, micro-lap finish (115-1xx, 115-2xx) spindle: carbide-tipped, micro-lap finish anvil: hardened steel (115-3xx)

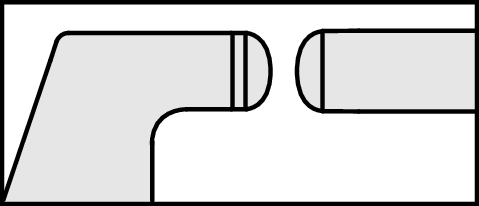

Anvil / Spindle:	Type F, spherical anvil and spindle SR=4 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	375 g
