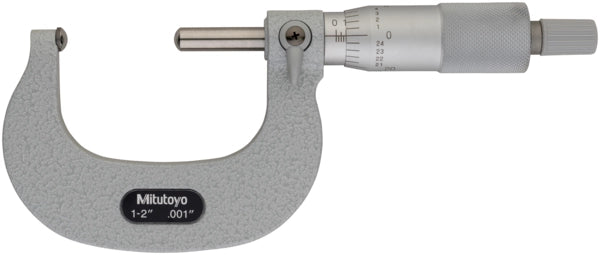

Tube Micrometer, Spherical Anvil/Spindle 1-2" 115-242

Roll over image to zoom in Click on image to zoom

Tube Micrometer, Spherical Anvil/Spindle 1-2" 115-242

Name: Tube Micrometer, Spherical Anvil/Spindle 1-2" 115-242
Brand: Mitutoyo
SKU: 115-242
Price: 131.4 EUR
Availability: InStock

MitutoyoSKU: 115-242

Price:

€131.40 €180.00

Quantity:

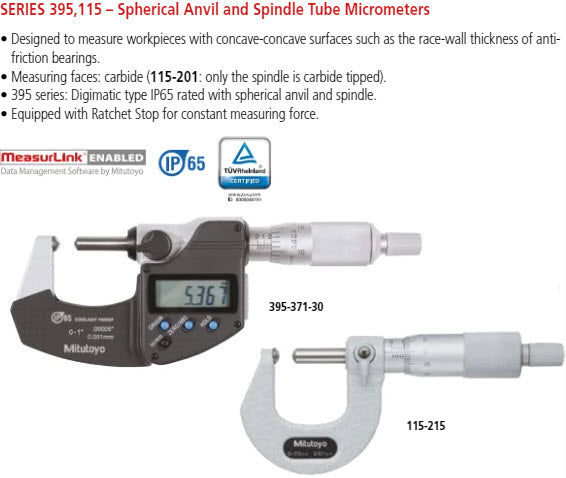

Mitutoyo; Tube Micrometer

A Mitutoyo non-digital tube micrometer equipped with spherical anvil and spindle tip for making wall thickness measurements on tubes and pipes. A ratchet stop guarantees repeatable measurement.

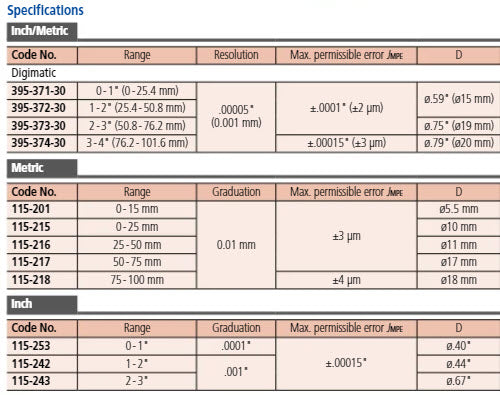

Product Information
Part Number	115-242
Measuring Range	1-2"
Accuracy	["±.00015\""]
Graduation	.001"
Accuracy	+/-.00015"
Unit of Measurement	Inch
Measuring Force	5-10N
Type	Tube
Constant Force Device	Ratchet Stop
Anvils & Spindle Design	Spherical Anvil & Spherical Spindle Type C (S-S)
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Inch
Range:	1 - 2 "
Graduation:	0,001"
Max. Permissible Error J MPE:	±0,00015"
Measuring face:	Spindle and anvil: carbide-tipped, micro-lap finish (115-1xx, 115-2xx) spindle: carbide-tipped, micro-lap finish anvil: hardened steel (115-3xx)

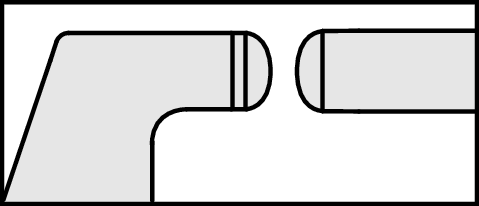

Anvil / Spindle:	Type F, spherical anvil and spindle SR=4 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	240 g
