Tube Micrometer, Spherical Anvil/Spindle 0-15mm, Carbide-tipped 115-201

Roll over image to zoom in Click on image to zoom

Tube Micrometer, Spherical Anvil/Spindle 0-15mm, Carbide-tipped 115-201

Name: Tube Micrometer, Spherical Anvil/Spindle 0-15mm, Carbide-tipped 115-201
Brand: Mitutoyo
SKU: 115-201
Price: 133.0 EUR
Availability: InStock

MitutoyoSKU: 115-201

Price:

€133.00 €177.11

Quantity:

Mitutoyo; Tube Micrometer

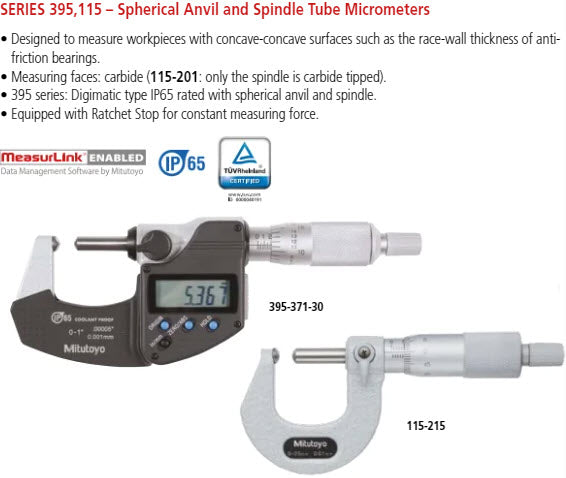

This Tube Micrometer allows you to measure curved surfaces such as the wall thickness of tubes, bearings and rings.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

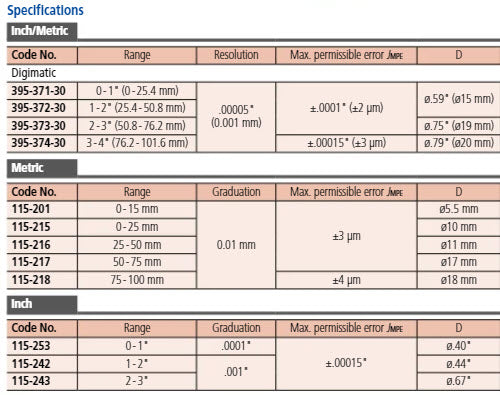

Product Information
Part Number	115-201
Measuring Range	0-15mm
Accuracy	["±.003mm"]
Graduation	.01mm
Accuracy	+/_.003mm
Unit of Measurement	Metric
Measuring Force	5-10N
Type	Tube
Constant Force Device	Ratchet Stop
Anvils & Spindle Design	Spherical Anvil & Spherical Spindle Type C (S-S)
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Metric
Range:	0 - 15 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±3 µm
Measuring face:	Spindle and anvil: carbide-tipped, micro-lap finish (115-1xx, 115-2xx) spindle: carbide-tipped, micro-lap finish anvil: hardened steel (115-3xx)

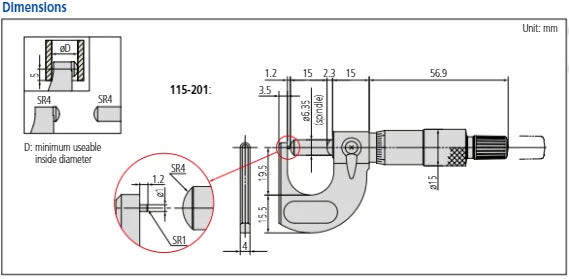

Anvil / Spindle:	Spherical D=1 mm and R=1 mm/spherical R=4 mm spindle
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, setting standard (from 25 mm upward), key
