Tube Micrometer, Spherical Anvil 25-50mm 115-116

Mitutoyo SKU: 115-116
List price: €141.00 Offer price: €109.00 Excluding VAT

Optional Services

The setting standard is calibrated separately from the micrometer.

Mitutoyo; Tube Micrometer

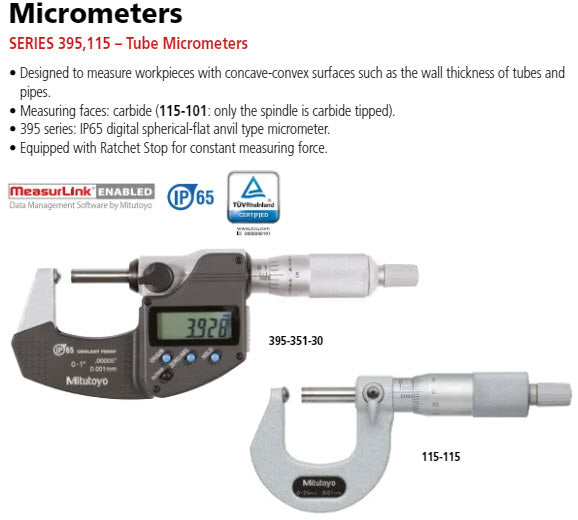

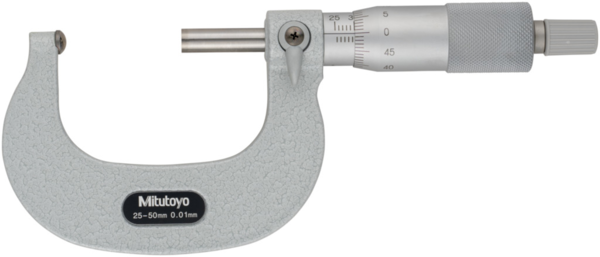

A Mitutoyo non-digital tube micrometer equipped with a spherical anvil for making wall thickness measurements on tubes and pipes. A ratchet stop guarantees repeatable measurement.

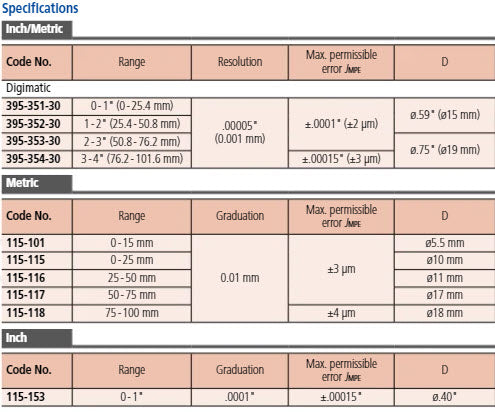

Specification
Digital/Analog:
Analog
Delivered:

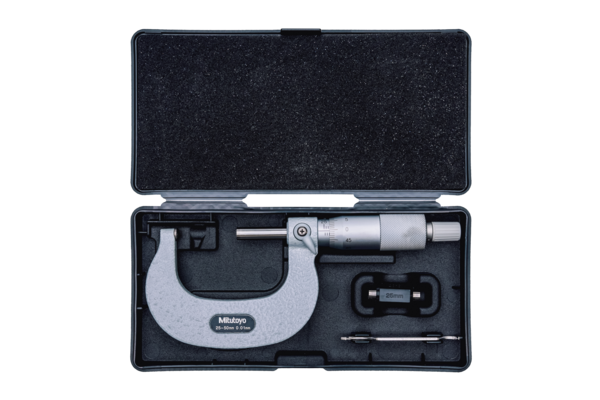

Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
25 - 50 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±3 µm
Flatness:
0,6 µm
Measuring face:
Spindle and anvil: carbide-tipped, micro-lap finish
(115-1xx, 115-2xx)
spindle: carbide-tipped, micro-lap finish
anvil: hardened steel
(115-3xx)

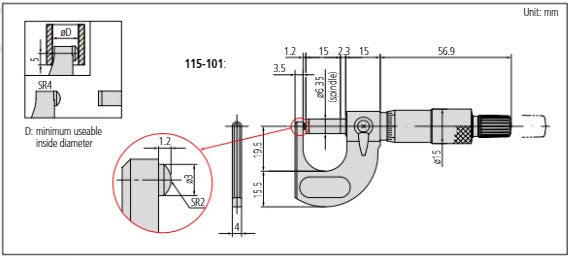

Anvil / Spindle:
Type E, sperical anvil SR=4 mm/ flat spindle
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
240 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
