Mitutoyo SKU: 115-303
List price: €158.00 Offer price: €122.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

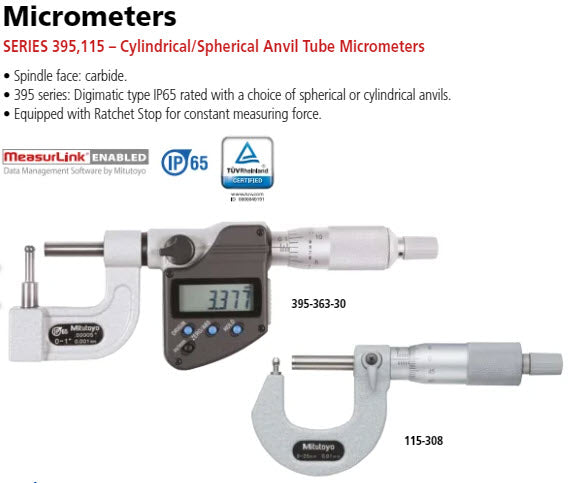

Mitutoyo; Tube Micrometer

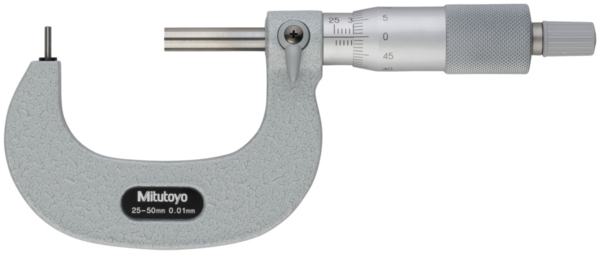

A Mitutoyo non-digital tube micrometer equipped with a pin anvil on a post for making wall thickness measurements on tubes and pipes. A ratchet stop guarantees repeatable measurement.

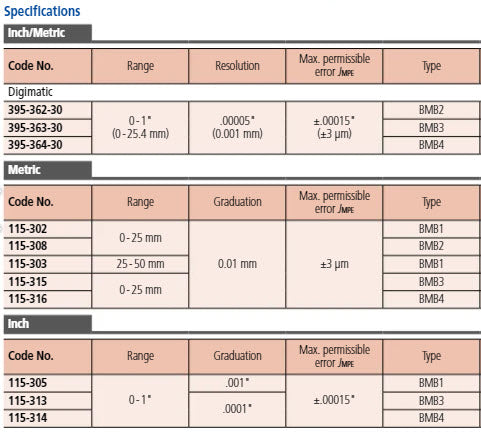

Specification
Digital/Analog:
Analog
Delivered:

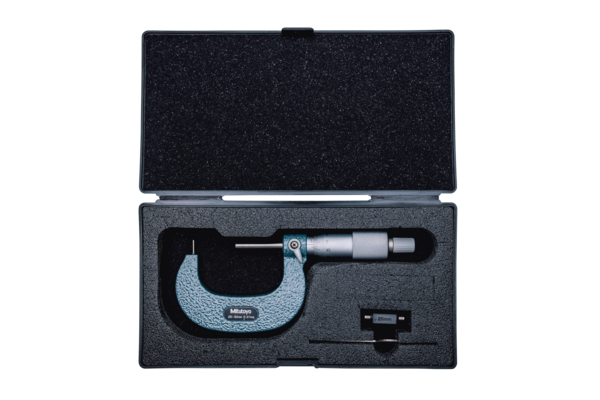

Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
25 - 50 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±3 µm
Flatness:
0,6 µm
Measuring face:
Spindle and anvil: carbide-tipped, micro-lap finish
(115-1xx, 115-2xx)
spindle: carbide-tipped, micro-lap finish
anvil: hardened steel
(115-3xx)
Anvil / Spindle:

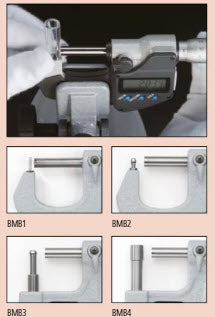

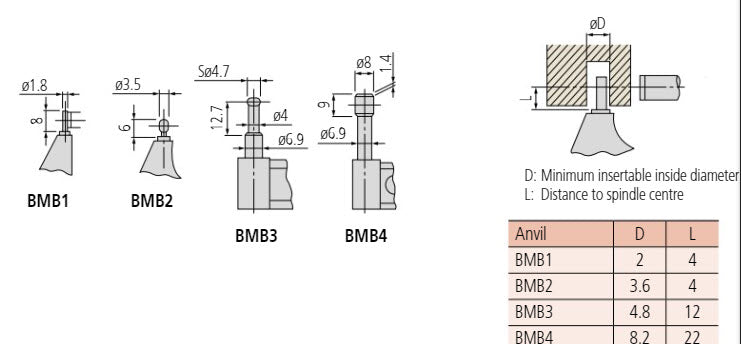

Type A, pin D=1.8 mm/ flat spindle
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
240 g
