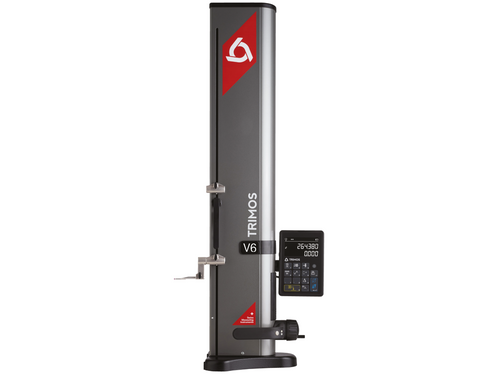

TRIMOS V6 MANUAL / MOTORISED HEIGHT GAUGE (0-400mm) 20-V6-400
Their clear display and user-friendly functions offer exceptional ease of use. But that’s not all: the V5 and V6 are equipped with a revolutionary displacement hand-wheel offering its user the choice of displacement mode of the measuring carriage; either manual or motor-driven. Neither mode is compromised, which means that the user who prefers a manual instrument will not notice a difference from a classic manual instrument, and the same applies to the motor-driven displacement. This innovation avoids having to make a difficult choice during the purchasing process and can accommodate multiple users with the same instrument.
The design of the V5 with its side probe holders revives an old Trimos tradition: they enable measuring with long, robust probes guaranteeing excellent repeatability. The V6 is of the same calibre as the V5. It’s equipped with a more precise measuring system and enables the use of an electronic perpendicular probe.
Click to View Product Brochure
FEATURES
- Measuring ranges: 400mm
- Resolution 0.0001mm/0.000005"
- Accuracy Max Permissible Error 2 + L(mm)/400
- Extremely easy to use
- Electronically adjustable measuring force
- Manual or motor-driven displacement
- Larger than 300mm probes as standard
- Vast range of accessories
- All adjustments possible without tools
- RS232 et USB interfaces
All images are for representation only.
