Diavite SKU: NFH-06/10/90/5
Price: €1,438.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?


PDF Brochure

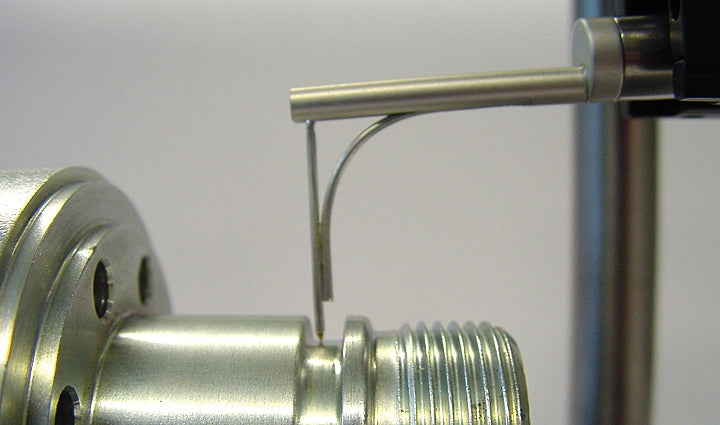

Tracer without skid NFH, bore measurement, X= 6 mm, 5 µm/90°

  • only for use with VHF feed system
  • maximum depths of grooves: 6 mm
  • groove width min: 1.5 mm
  • radius of the tip: standard 5 μm
  • also available with 2 μm diamond
  • do not use with the advance device down
  • the use of a stand for the advance device is necessary



Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
