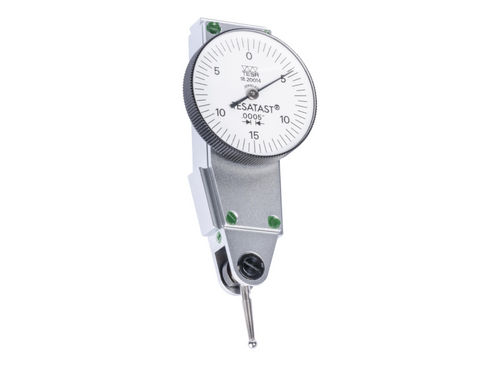

TESATAST Lever-type dial test indicator, lateral, 0.03" Travel 0.0005" Resolution Ø 1.1 in 01820014
SPECIFICATION
| Measuring force |
Low measuring force |
| Units |
mm |
| Standard |
DIN 2270 / EN ISO 9493 |
| Material |
Housing: metal Ball inserts: tungsten carbide |
| Dimensions |
Insert thread: M1,4 |
| Dial |
Rotating dial |
| Particular characteristic(s) |
Integrated shockproof system |
| Included in delivery |
Lever-type dial test indicator with mounted ball insert Ø 2 mm Wrench for insert mounting Rigid stem Ø 8 mm User manual Declaration of conformity |
All images are for representation only.
