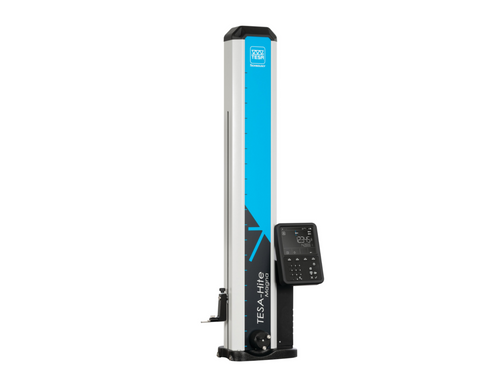

Tesa-Hite Magna Manual Height Gauge 0-700mm 00730083

Click to View Product Brochure

Tesa-Hite Magna Manual Height Gauge 0-700mm

Equipped with the Magna-µ-System measuring system, these 1D manual height gauges are particularly suitable for harsh conditions. Thanks to their robustness and their high protection level, they are very robust and specifically designed for rough production environments where a high penetration of dust particles and the frequent splashing of liquids (water, oil etc.) are common.

Protected against the penetration of liquids or dust (IP65)

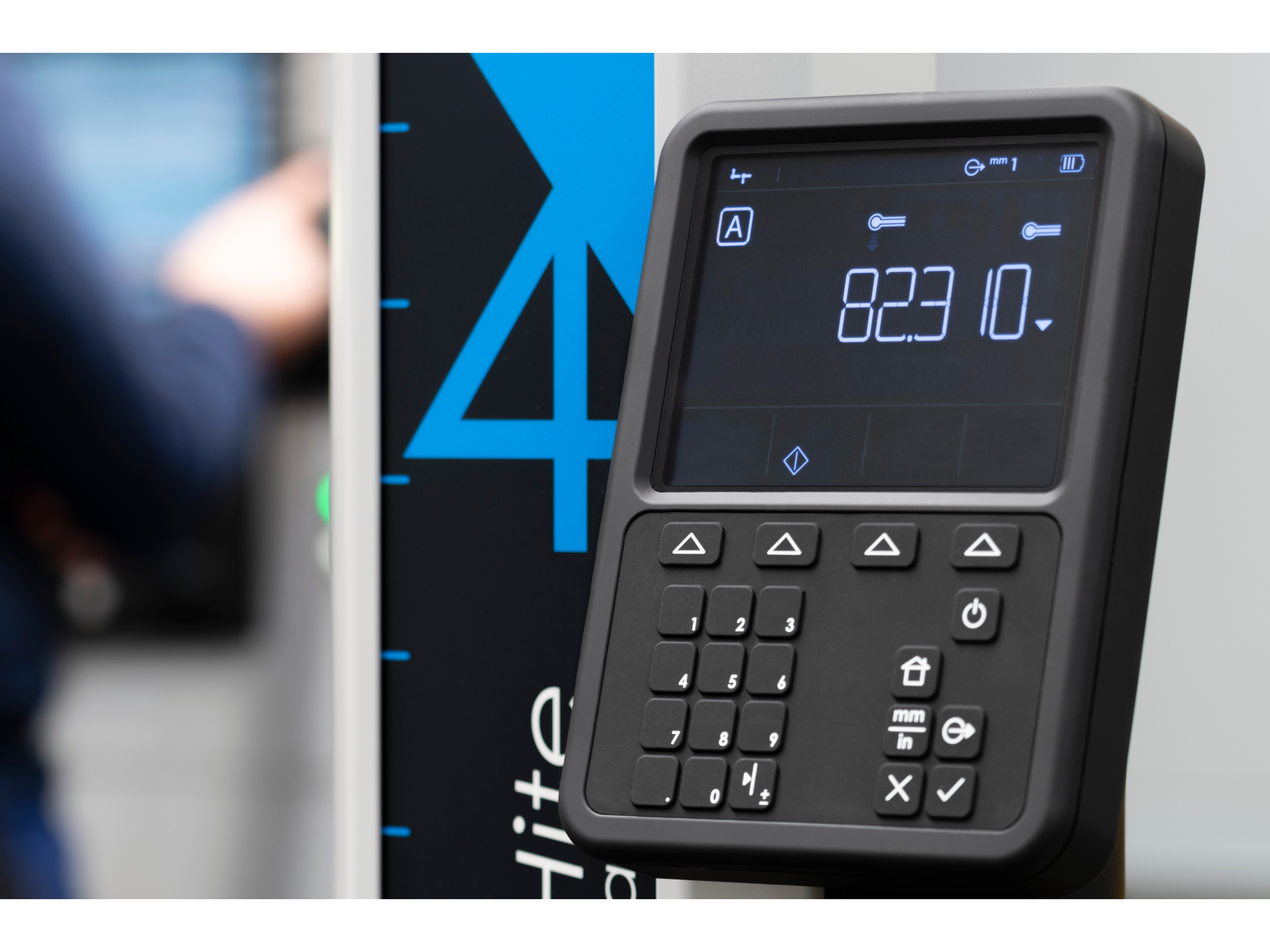

• Big colour screen for better reading in dimly lit surroundings
• Black display background for excellent contrast
• Large numbers displayed on the screen (21 mm) for optimal readability
• Keyboard with few buttons for easy learning without confusion

AUTONOMY

• Long battery life (60h) to avoid too frequent recharging

MEASURE

• Philosophy of use similar to tablets or smartphones
• Quick access to the first measurement from start up (<4s) for a significant time saving
• QUICKCENTER DYNAMIC technology integrated to efficiently determine the culmination points
• Context-based help to avoid incorrect use and bad results
• The interface can be customized according to the user's wishes


Digital Height Gauge Features

Coefficient of linear expansion: (12 ± 1.5) x 10-6 KZero fixed

Cast iron base

Integrated fine adjustment

Function(s): Manual displacement of the measuring probe

Autonomy: ≈ 60 hours

SCS calibration certificate included as standard
