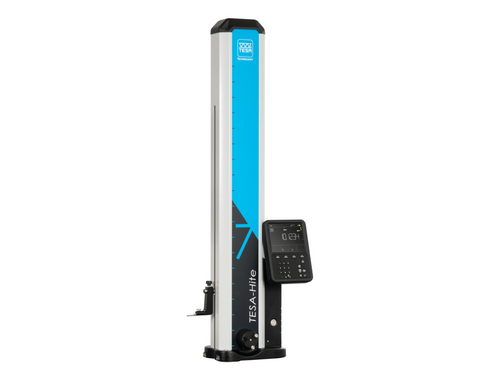

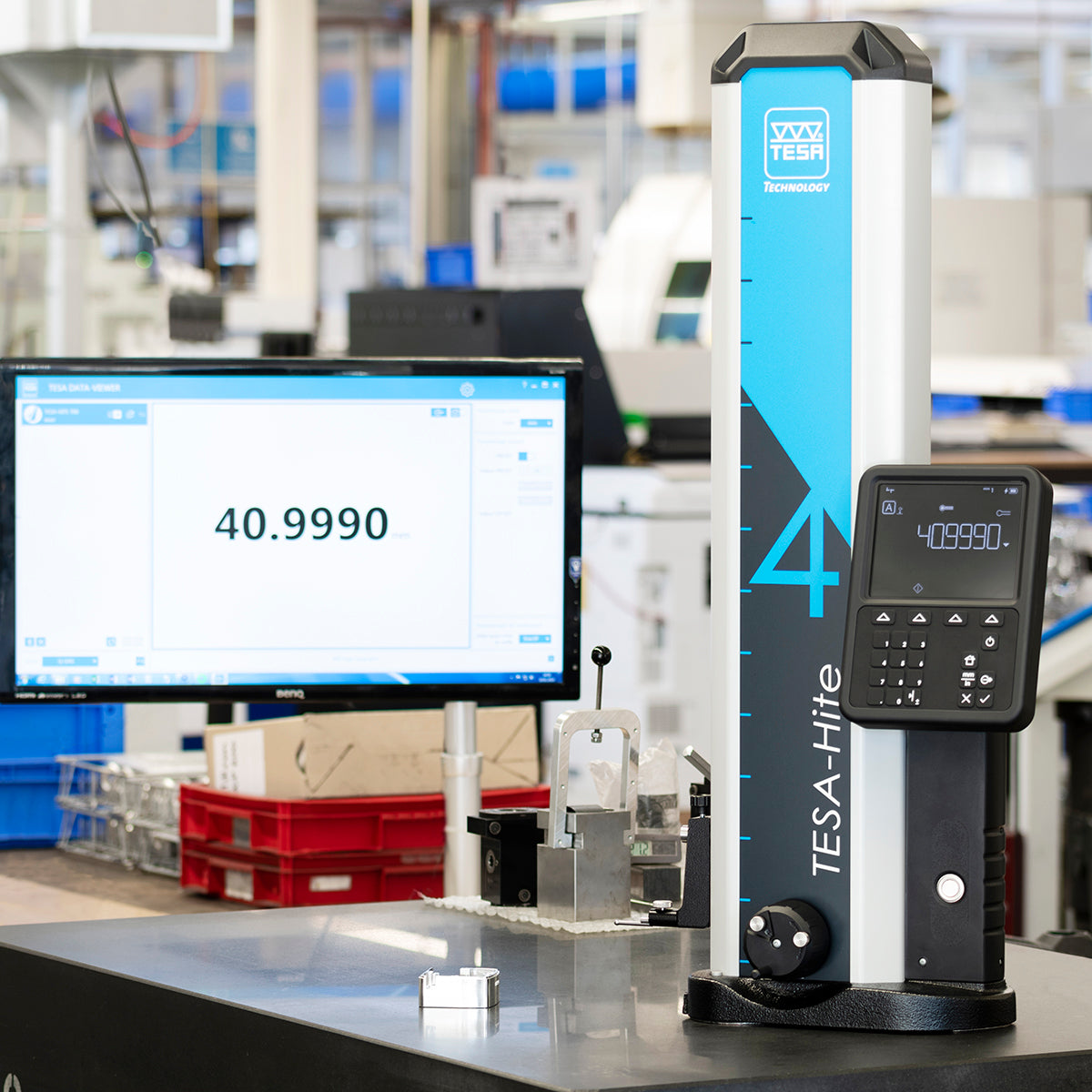

Tesa-Hite Manual Height Gauge 0-715mm/0-28"
This manual 1D height gauge with its refined panel and its easily-accessible software is typically used in workshops. It focuses on the main functions necessary for quick measurements and immediate access to the results. Its optical reading system offers users greater accuracy than its magnetic system counterpart (TESA-HITE MAGNA) without having to compromise on its long-term reliability.
Control PANEL
- Protected against the penetration of liquids or dust (IP65)
- Big colour screen for better reading in dimly lit surroundings
- Black display background for excellent contrast
- Large numbers displayed on the screen (21 mm) for optimal readability
- Keyboard with few buttons for easy learning without confusion
AUTONOMY
- Long battery life (60h) to avoid too frequent recharging
MEASURE
- Philosophy of use similar to tablets or smartphones
- Quick access to the first measurement from start up (<4s) for a significant time saving
- QUICKCENTER DYNAMIC technology integrated to efficiently determine the culmination points
- Context-based help to avoid incorrect use and bad results
- The interface can be customized according to the user's wishes
- Coefficient of linear expansion: (12 ± 1.5) x 10-6 K-1
- Zero fixed
- Cast iron base
- Integrated fine adjustment
- Function(s): Manual displacement of the measuring probe
- Autonomy: ≈ 60 hours
- SCS calibration certificate included as standard
