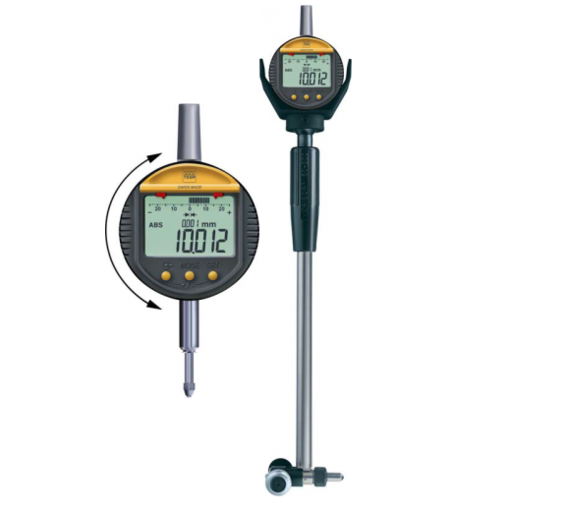

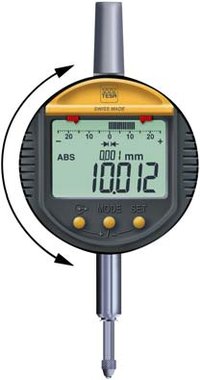

TESA Digico 705 MI Measuring range: 12.5mm/0.5", Resolution: 0.001mm/.00005" Code 01930258 Used for bore gauges
TESA Digico 705 MI Measuring range: 12.5mm/0.5", Resolution: 0.001mm/.00005" Code 01930258 Used for bore gauges
TESA Digico 705 MI Measuring range: 12.5mm/0.5", Resolution: 0.001mm/.00005" Code 01930258 Used for bore gauges
TESA Digico 705 MI Measuring range: 12.5mm/0.5", Resolution: 0.001mm/.00005" Code 01930258 Used for bore gauges
Roll over image to zoom in Click on image to zoom
TESA Digico 705 MI Measuring range: 12.5mm/0.5", Resolution: 0.001mm/.00005" Code 01930258 Used for bore gaugesTESA Digico 705 MI Measuring range: 12.5mm/0.5", Resolution: 0.001mm/.00005" Code 01930258 Used for bore gaugesTESA Digico 705 MI Measuring range: 12.5mm/0.5", Resolution: 0.001mm/.00005" Code 01930258 Used for bore gaugesTESA Digico 705 MI Measuring range: 12.5mm/0.5", Resolution: 0.001mm/.00005" Code 01930258 Used for bore gauges

TESA Digico 705 MI Measuring range: 12.5mm/0.5", Resolution: 0.001mm/.00005" Code 01930258 Used for bore gauges

Tesa SKU: 01930258
List price: €453.00 Offer price: €310.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Measuring modes ABS/REL.
Dual LC Display.
Display rotation through 270 degrees. Same goes for the key functions.
Mechanical tolerance marks.
Symbols for both limits.
ON/Auto OFF
PRESET mode.
Tolerance mode.
Data output.
Counting sense reversal.
Keypad lock.
Metric/Inch units.
Full RESET

Style of Indicator Standard Digital
Face Diameter 57mm
Measurement units Inch/Metric
Indicator Range 0-.5"/0-12.7mm
Mounting Diameter 8mm
Measuring Range. 5"/12.7mm
Resolution .00005"/.001mm
SPC Output Yes
Accuracy .0002"/.005mm
Back Flat Back
Digital, Non-Digital Digital
Additional Details Code= 01930258| Used for= Bore Gauges|
