Tesa Digital depth models with short cut measuring face 0-300mm IP67 00530443
Roll over image to zoom in Click on image to zoom
Tesa Digital depth models with short cut measuring face 0-300mm IP67 00530443

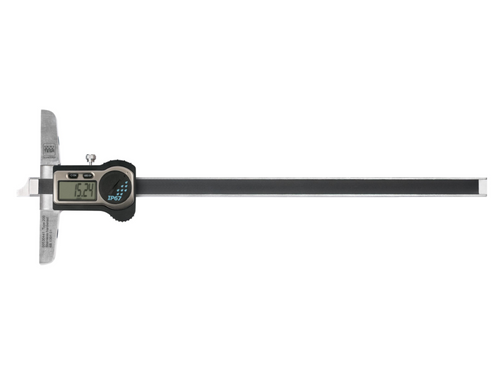

Tesa Depth Caliper with short measuring face 0-300mm/0-12" IP67 00530443

Tesa SKU: 530443
Price: €566.03 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Digital depth models with short measuring face (0-300mmRange) IP67 00530443

Specification

Units mm / in
Standard ISO 13385-2:2019
Max. perm. errors L = length in mm 0 < L ≤ 100: ± 20 µm 100 < L ≤ 500: ± 30 µm
Resolution 0,01 mm / .0005 in
Zero Fixed
Material Stainless steel
Degree of protection IP67
Particular characteristic(s) Locking screw
Display LCD, 11 mm
Power supply CR2032 button battery
Function(s) Stand-by after 10 min ABS or DIFF mode Low battery indicator
Autonomy 12'000 hours
Included in delivery Battery (1x) Measuring report Declaration of conformity
Data output(s) TLC
