Tesa Digital depth models with short measuring face 0-200mm IP67 00530441
Roll over image to zoom in Click on image to zoom
Tesa Digital depth models with short measuring face 0-200mm IP67 00530441

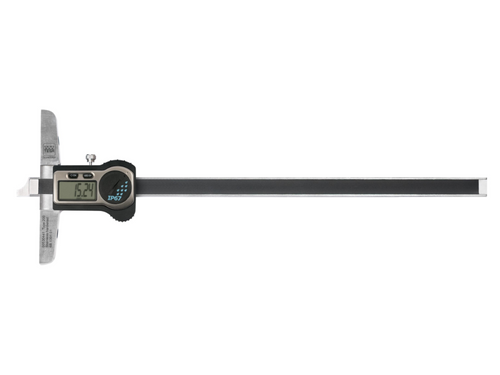

Tesa Depth Caliper with short measuring face 0-200mm/0-8" IP67 00530441

Tesa SKU: 00530441
Price: €511.95 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Tesa Digital depth models with short measuring face (0-200mm Range) IP67 00530441

Specification

Units mm / in
Standard ISO 13385-2:2019
Max. perm. errors L = length in mm 0 < L ≤ 100: ± 20 µm 100 < L ≤ 500: ± 30 µm
Resolution 0,01 mm / .0005 in
Zero Fixed
Material Stainless steel
Degree of protection IP67
Particular characteristic(s) Locking screw
Display LCD, 11 mm
Power supply CR2032 button battery
Function(s) Stand-by after 10 min ABS or DIFF mode Low battery indicator
Autonomy 12'000 hours
Included in delivery Battery (1x) Measuring report Declaration of conformity
Data output(s) TLC

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
