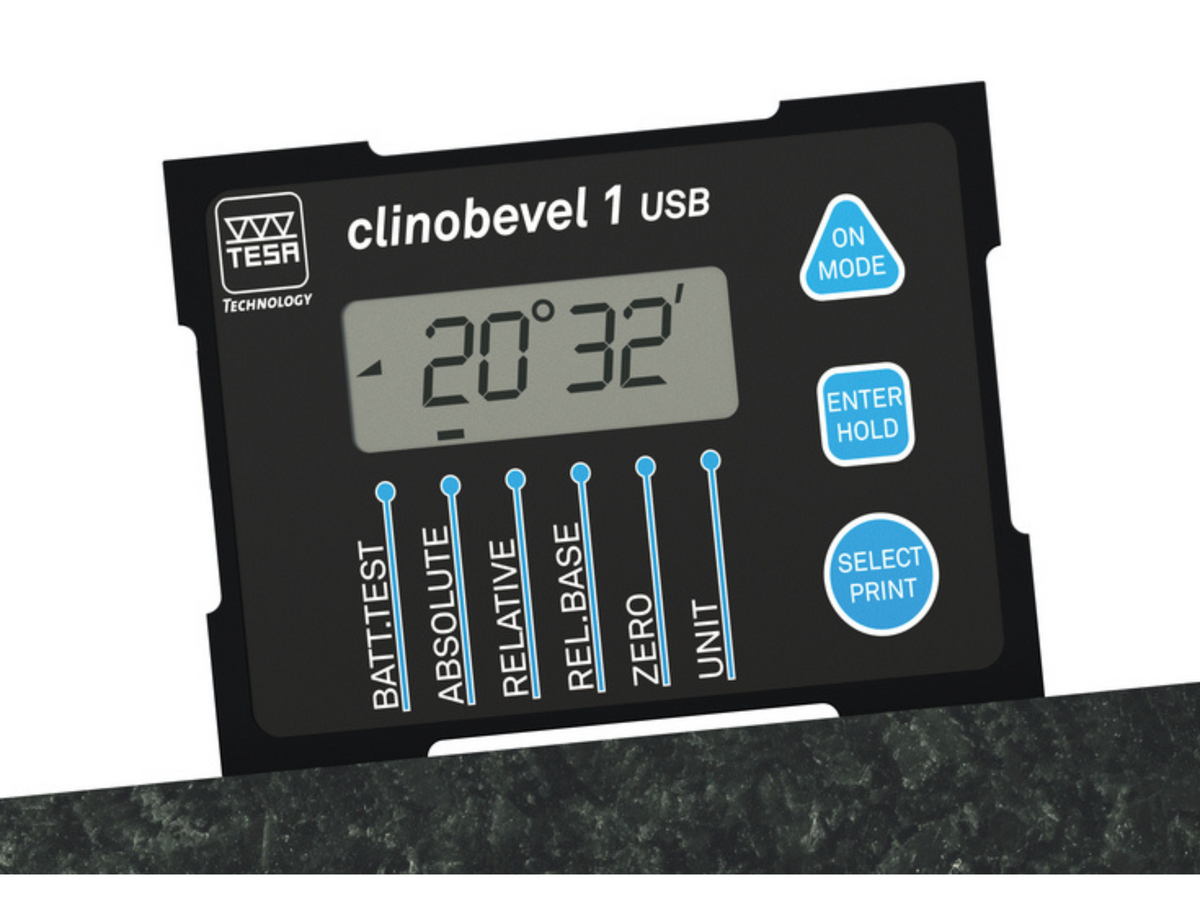

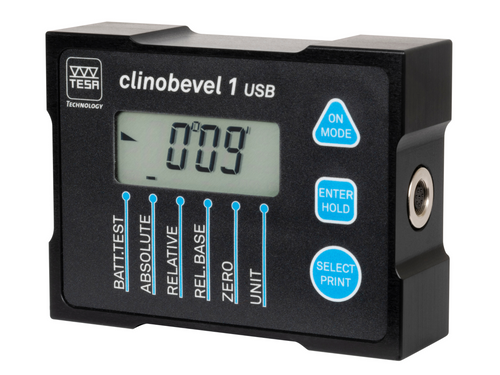

Tesa Clinobevel 1 Clinometer + Clinosoft Software 05330203
Units DEG, mm/m, „/10“, „/12“, mRad, DEG/min, min/sec, mm/REL, „/REL, A%o, GON
Standard DIN 2276
Max. perm. errors 2' + 1 digit
Resolution 0,025 mm/m
Material Aluminium anodised
Dimensions 100 x 75 x 35 mm
Measuring face(s) 4 flat measuring faces
Degree of protection IP65
Display LCD display
Weight 520 g
Power supply 1 battery type LRC 6, AA, 1,5 V
Autonomy ≈ 150 hours
Data output(s) USB, RS-485
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
