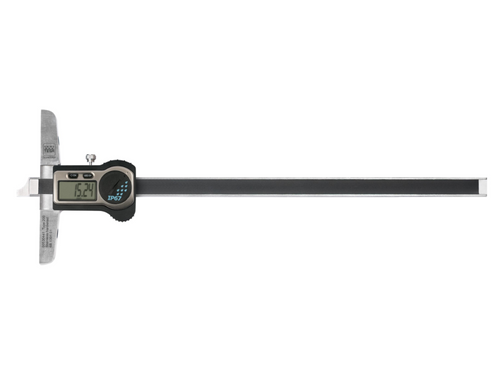

Tesa Depth Caliper with short measuring face 0-500mm/0-20" IP67 00530444
Roll over image to zoom in Click on image to zoom
Tesa Depth Caliper with short measuring face 0-500mm/0-20" IP67 00530444

Tesa Depth Caliper with short measuring face 0-500mm/0-20" IP67 00530444

Tesa SKU: 00530444
Price: €698.24 Excluding VAT

Optional Services

Add your Gauge ID, asset/serial number, company name, logo or QR code.

Digital depth models with short measuring face (0-500mm Range) IP67 00530444

Specification

Units mm / in
Standard ISO 13385-2:2019
Max. perm. errors L = length in mm 0 < L ≤ 100: ± 20 µm 100 < L ≤ 500: ± 30 µm
Resolution 0,01 mm / .0005 in
Zero Fixed
Material Stainless steel
Degree of protection IP67
Particular characteristic(s) Locking screw
Display LCD, 11 mm
Power supply CR2032 button battery
Function(s) Stand-by after 10 min ABS or DIFF mode Low battery indicator
Autonomy 12'000 hours
Included in delivery Battery (1x) Measuring report Declaration of conformity
Data output(s) TLC

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
