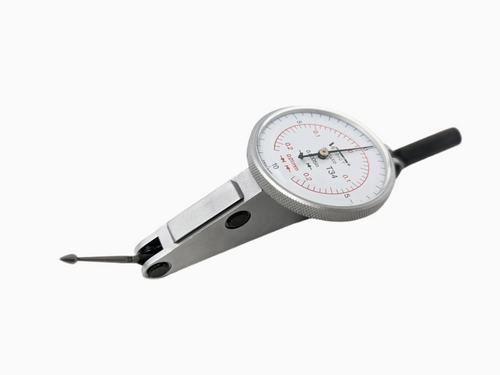

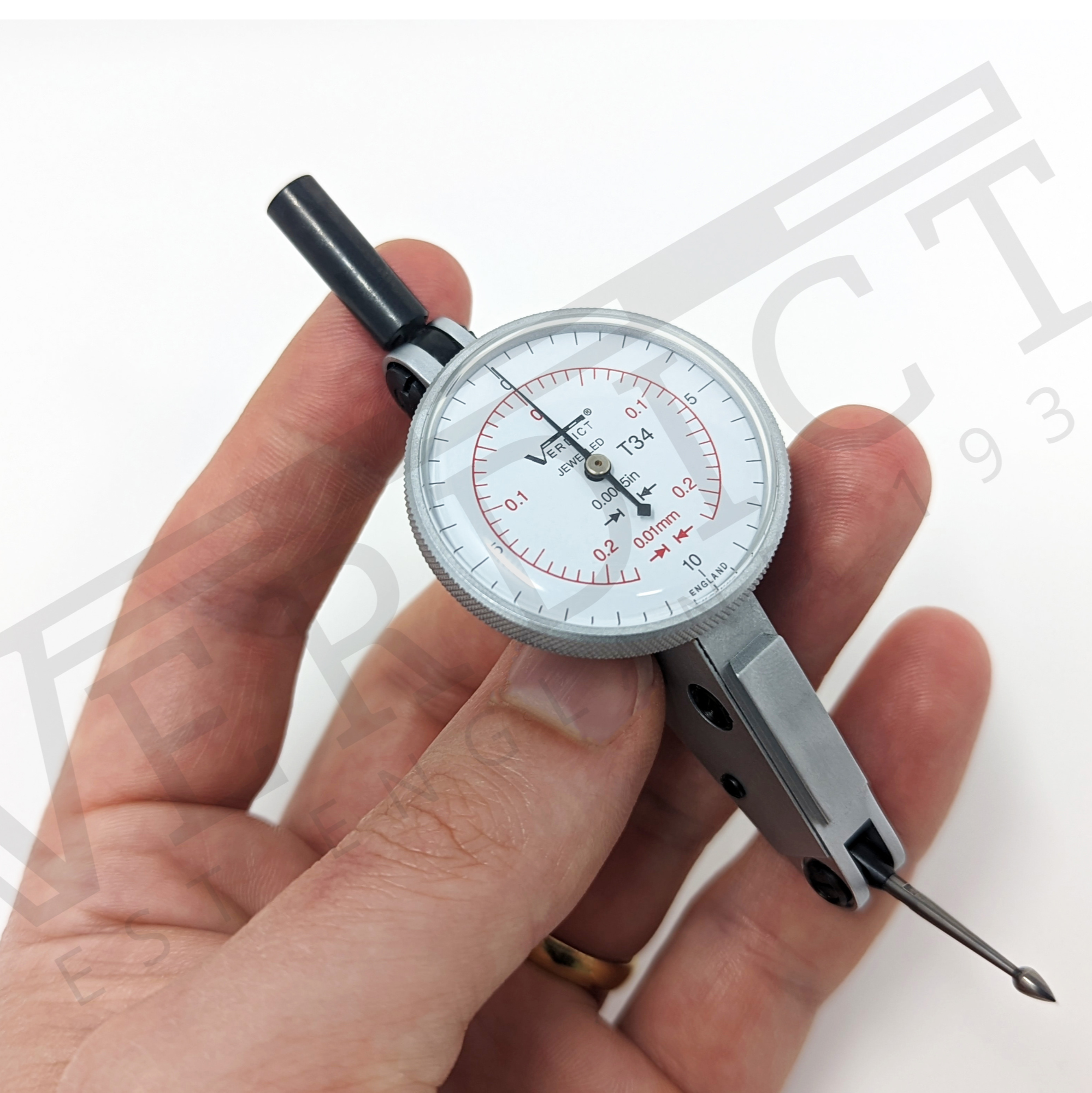

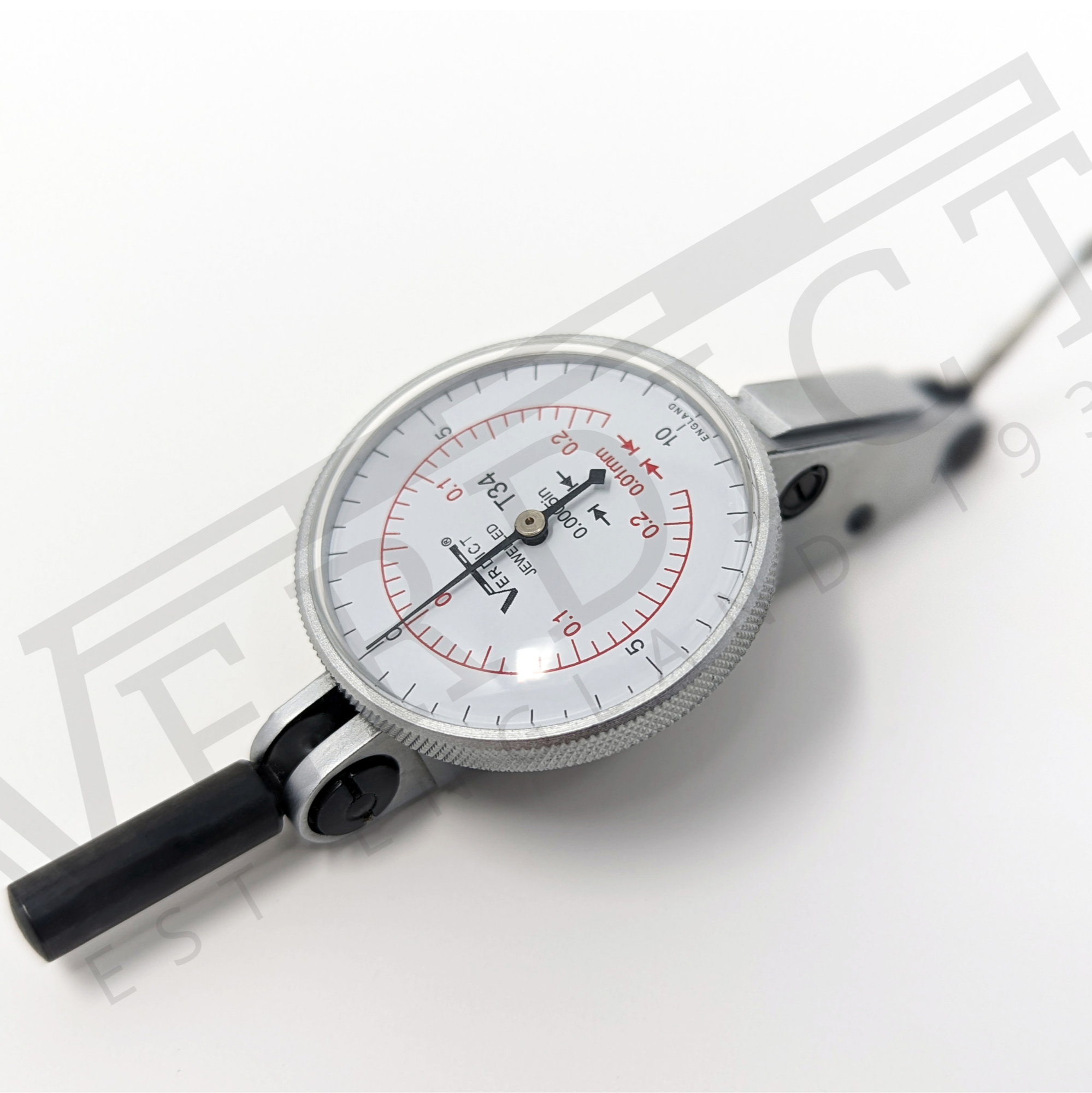

The T34 Metrinch DTI is the British-engineered solution to the measuring challenges when working with both metric and imperial units.
The T34 Metrinch DTI has a clear and easy-to-use display that gives instantly accurate measurements in both metric and imperial units without swapping tools or machine downtime.
Key features
- Worm mechanism
- Clamping facilities by means of dovetail or end spigot
- Dial rotates for zero setting
- Automatic reversal movement
- Jewelled mechanism
- Stylus swivels through an arc of 180 degrees
- Unidirectional hand travel
- Lever pivots are mounted in long-life ball bearings
- Fitted with 1/4 inch diameter spigot
- Swivel spigot standard on all models
Specifications
- Product code: 01/3034
- Model: T34 Metrinch
- Dial diameter: 1 3/8 inch / 36 mm
- Reading: 0.0005 inch / 0.01 mm
- Graduation: 0-10-0
- Range: 0.020 inch / 0.44 mm
- Stylus length: 0.811 inch / 20.6 mm
