T-ALL Setting, Calibrations and Measuring Bench with Manual of Motorised Function

T-ALL Setting, Calibrations and Measuring Bench with Manual of Motorised Function

THE FIRST BENCH WITH BOTH MOTORIZED AND MANUAL FUNCTION
FOR SETTING, CALIBRATION AND MEASUREMENTS

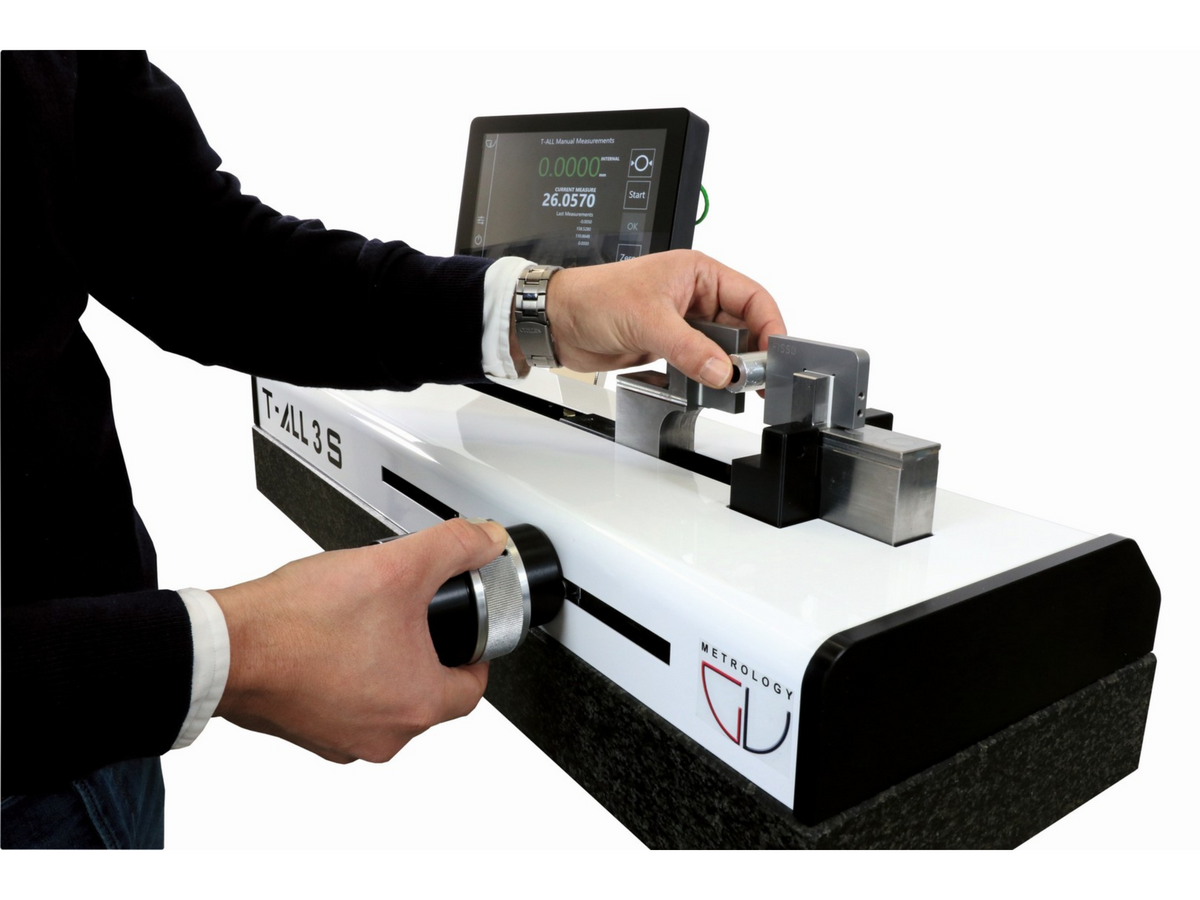

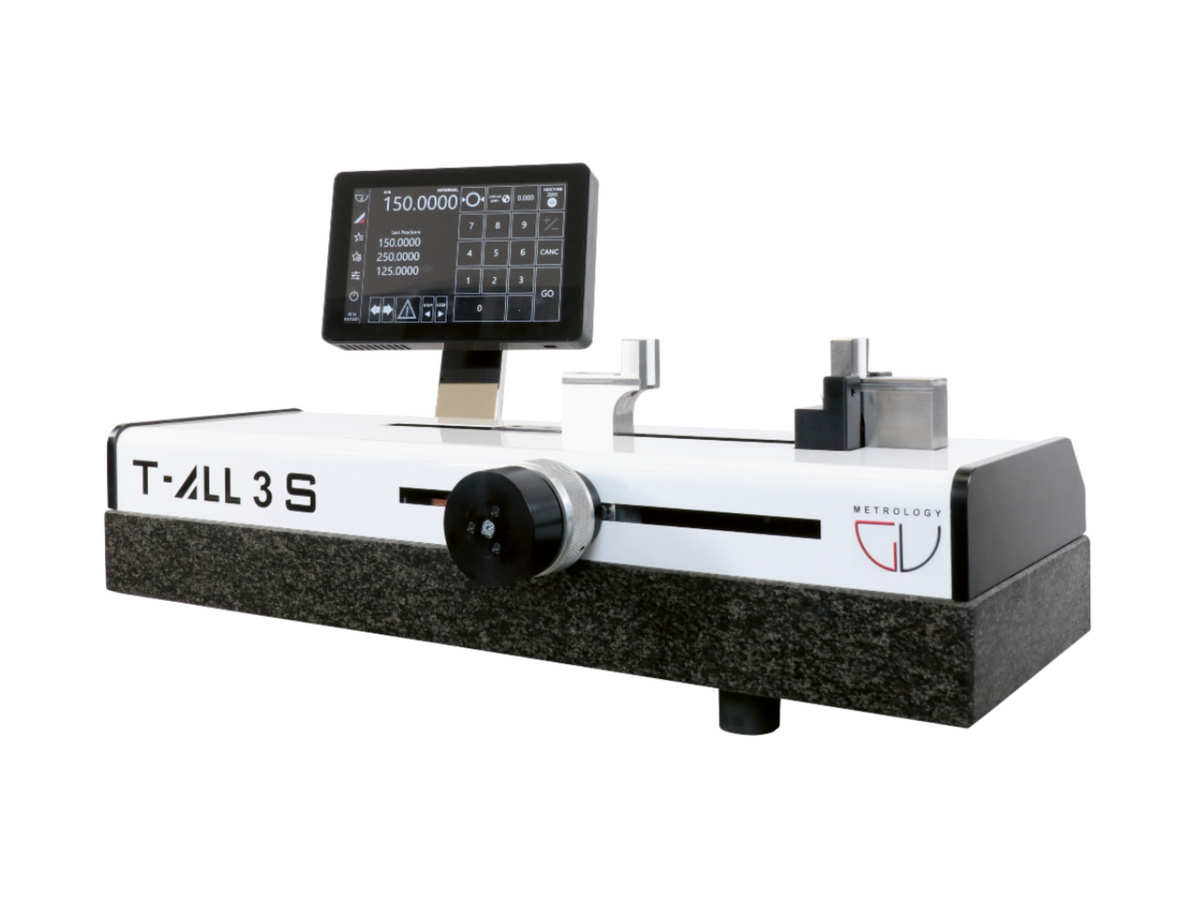

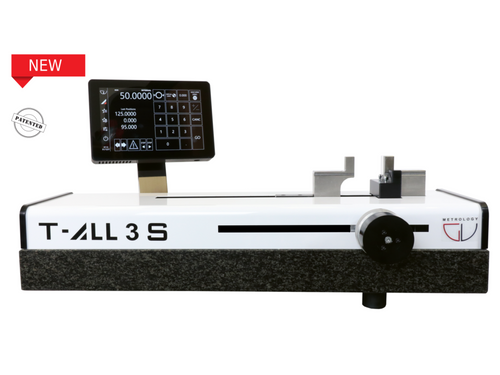

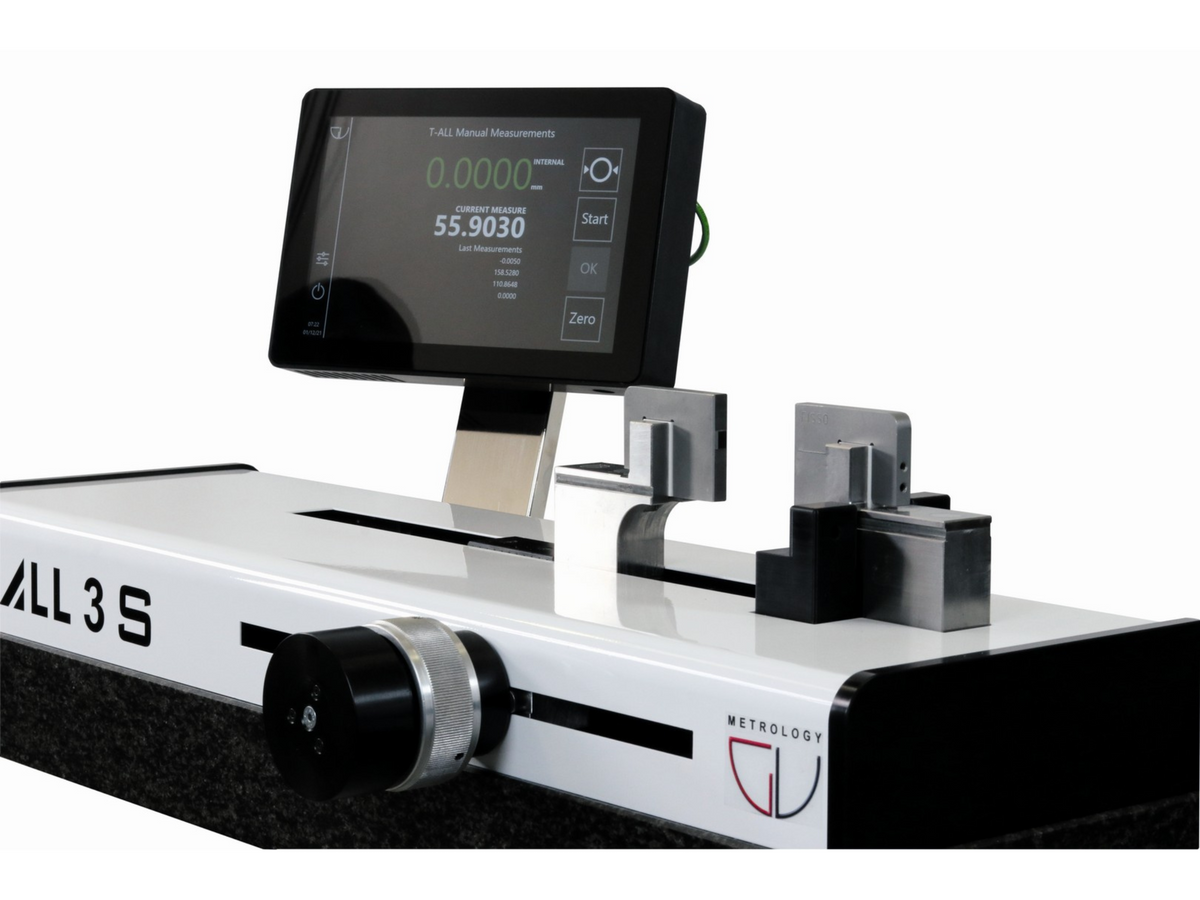

The NEW is the first patented bench with both motorized and manual use. Highly versatile, this machine is at the same time a setting and calibration bench for handheld instruments and a measurement gage for production parts. The manual mode allows measurements with constant force thanks to the preloaded handle and the anvils in hard metal. The software saves all measurements data. This machine includes all functions of the TR bench and the adapters and accessories are perfectly interchangeable

Advantages

• Reduction of the zeroing and pre-setting operations.
• Cost saving, in terms of non-purchasing master rings and gage blocks: TR can replace , Micron per Micron, any master ring plus all gage blocks.
• Better accuracy in presetting: the operation with the gage blocks requires precision and time: with TR you just have to digit the value.
• With TR it’s easier: in any zeroing operation you have one fixed point and the chance to have 2 hands free to reach the minimum point. The operator error is reduced.

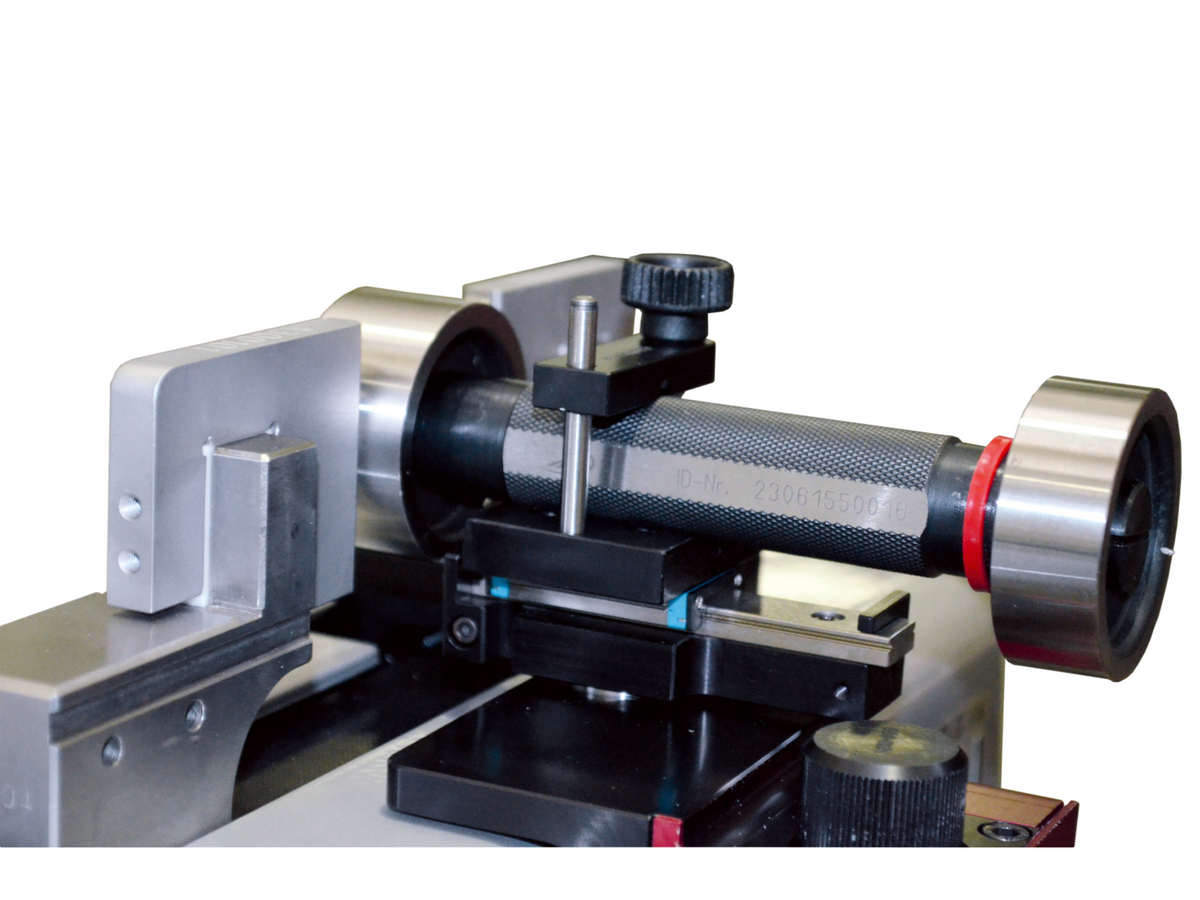

• With patented adapters that guide the instruments during the operations, the TR can work on the internal and the external of the ceramic blocks.
• The hardness of the ceramic ensure durability.
• If certified by a recognized authority, TR can be a certified Primary Reference which allows the company to the Inhouse calibration of the instruments and consequently represents a cost saving option and ensures the permanent availability of the instruments in the workshop.
• Bar code scanner for value recall
