Steinmeyer KLM60 Small Universal Length Measuring Machine 76420600320 60mm capacity

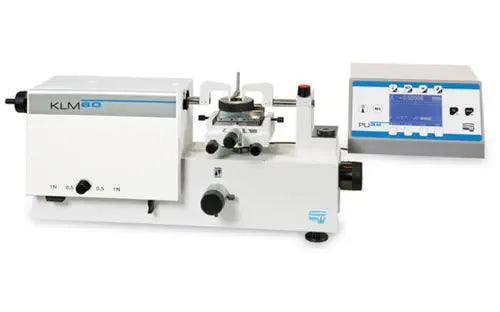

Small Universal Length Measuring Machine KLM 60

The small universal length measuring machine KLM 60is a precision measuring device for external and internal measurements with a measuring range of up to 160mm.

View Data Sheet

Contact our Sales Department for a demonstration or quotation.

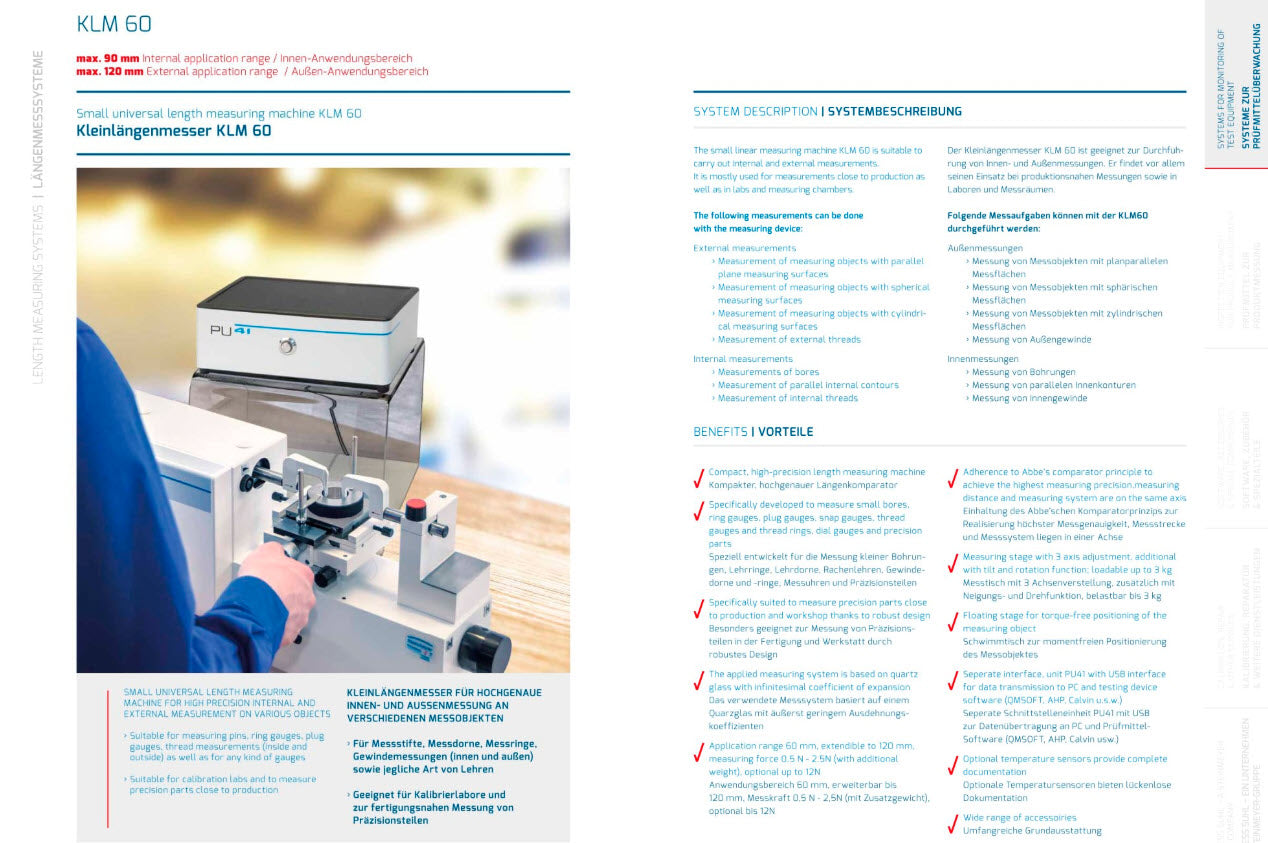

System description

• The KLM 60 is suitable for carrying out internal and external measurements. Measuring range up to 60mm, expandable to 120mm. Delivery with an extensive range of standard equipment. compact, high-precision length measuring device suitable for measuring pins, ring gauges, plug gauges, thread measurements (inside and outside) as well as for each kind of gauges comprehensive basic equipment measuring range 60 mm, extendable to 120 mm

The following measurements can be done with the measuring device:

External measurements

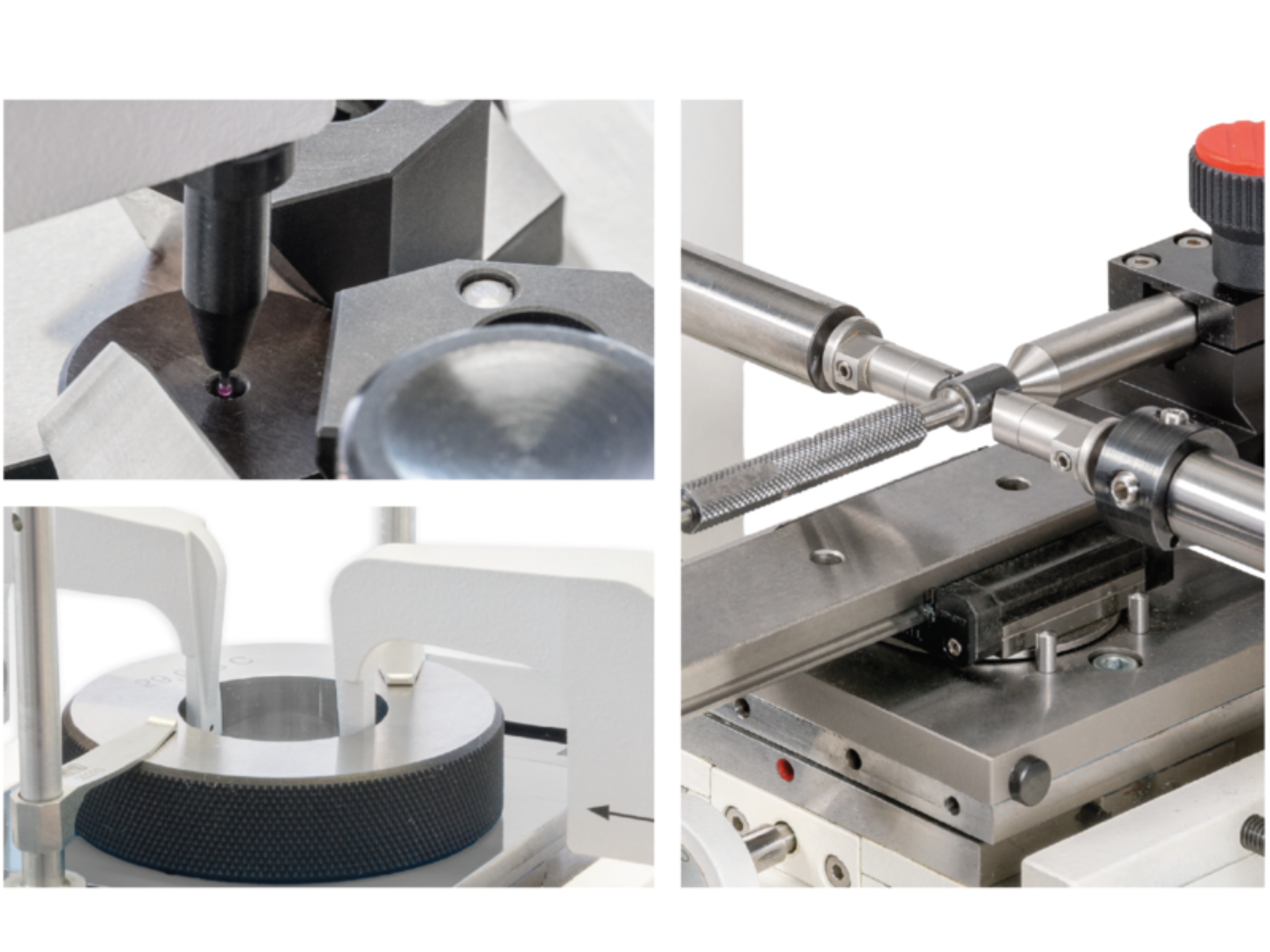

• Measurement of measuring objects with parallel plane measuring surfaces
• Measurement of measuring objects with spherical measuring surfacesMeasurement of measuring objects with cylindrical measuring surfaces
• Measurement of external threads

Internal measurements

• Measurements of bores
• Measurement of parallel internal contours
• Measurement of internal threads

Technical data

• Application range internal measurement (up to max.) 135 mm
• Application range external measurement (up to max.) 160 mm
• Direct measurement range 60 mm
• Resolution 0,01 µm / 0,1 µm / 1,0 µm
• Repeatability (range) internal measurement < 0,20 µm
• Repeatability (range) external measurement < 0,1 µm
• Measuring force with additional weight up to 2,5 N / optional 12 N
• Measuring uncertainty internal measurement ± 0,15 µm + 1 * 10-6 * L
• Measuring uncertainty external measurement ± 0,08 µm + 1 * 10-6 * L

Benefits

• Compact, high-precision length measuring machine with measuring x, y, and z axis
• Specifically developed to measure small bores,ring gauges, plug gauges, snap gauges, thread gauges and thread rings, dial gauges, and precision parts.
• Specifically suited to measure precision parts close to production and workshop thanks to robust design.
• The applied measuring system of the x-axis is based on quartz glass with an infinitesimal coefficient of expansion.
• Application range 160 mm (OD), direct measuring range 60 mm, measuring force 0.5 N – 2.5 N (additional weight) optional up to 12 N.
• Adherence to Abbe‘s comparator principle to achieve the highest measuring precision, measuring distance and measuring system are on the same axis.
• Measuring stage with x, y, z axis adjustment, y, and z axis with measuring system. Additional with tilt and rotation function; loadable up to 3 kg.
• Floating stage for torque-free positioning of the measuring object.
• Seperate interface, unit PU41 with USB interface for data transmission to PC and testing device software (QMSOFT, AHP, Calvin u.s.w.)
• Optional temperature sensors provide complete documentation.

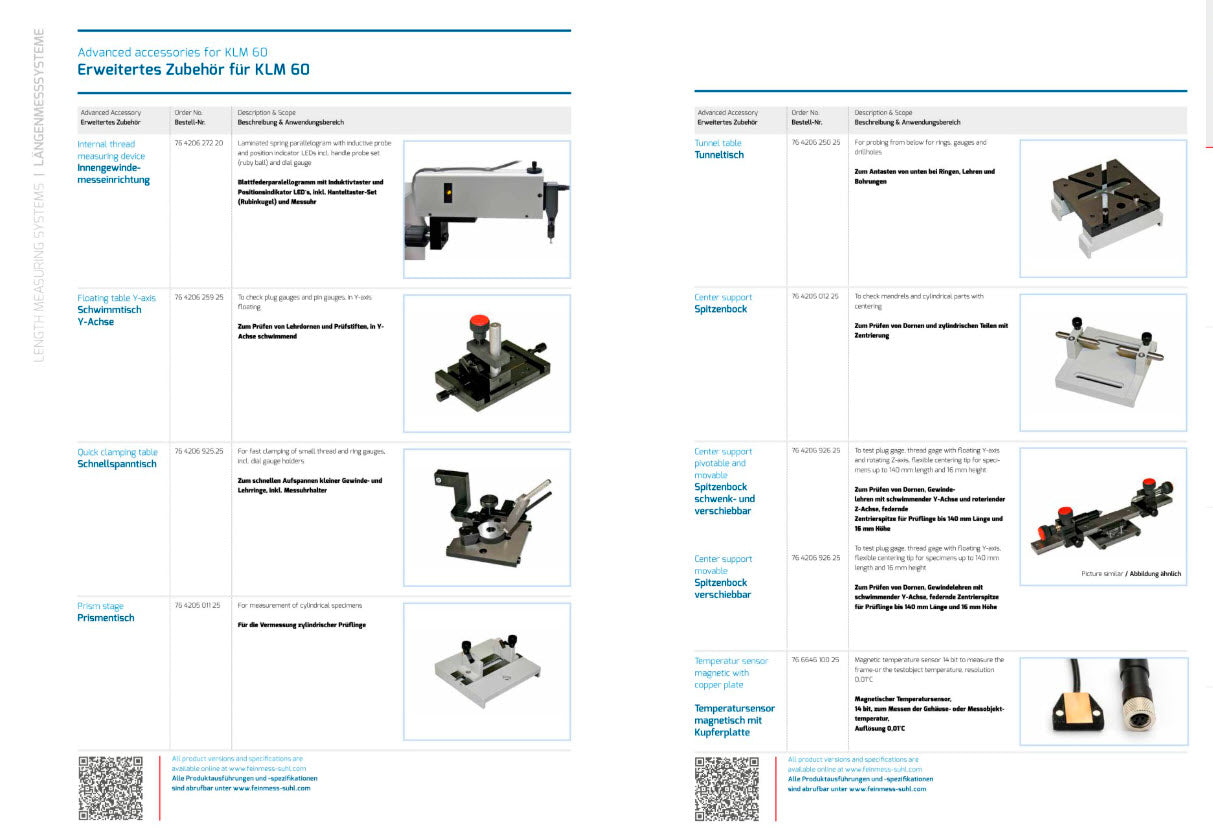

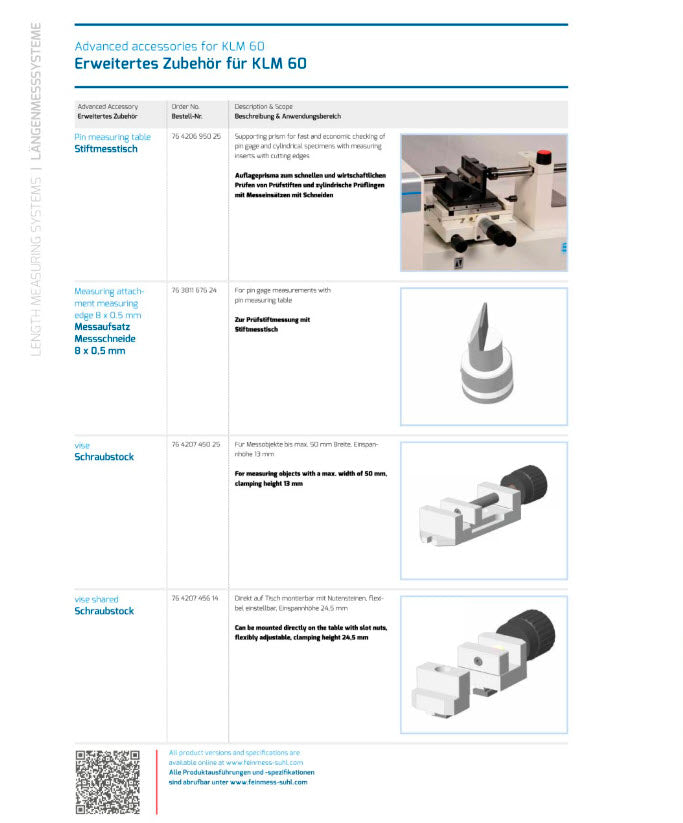

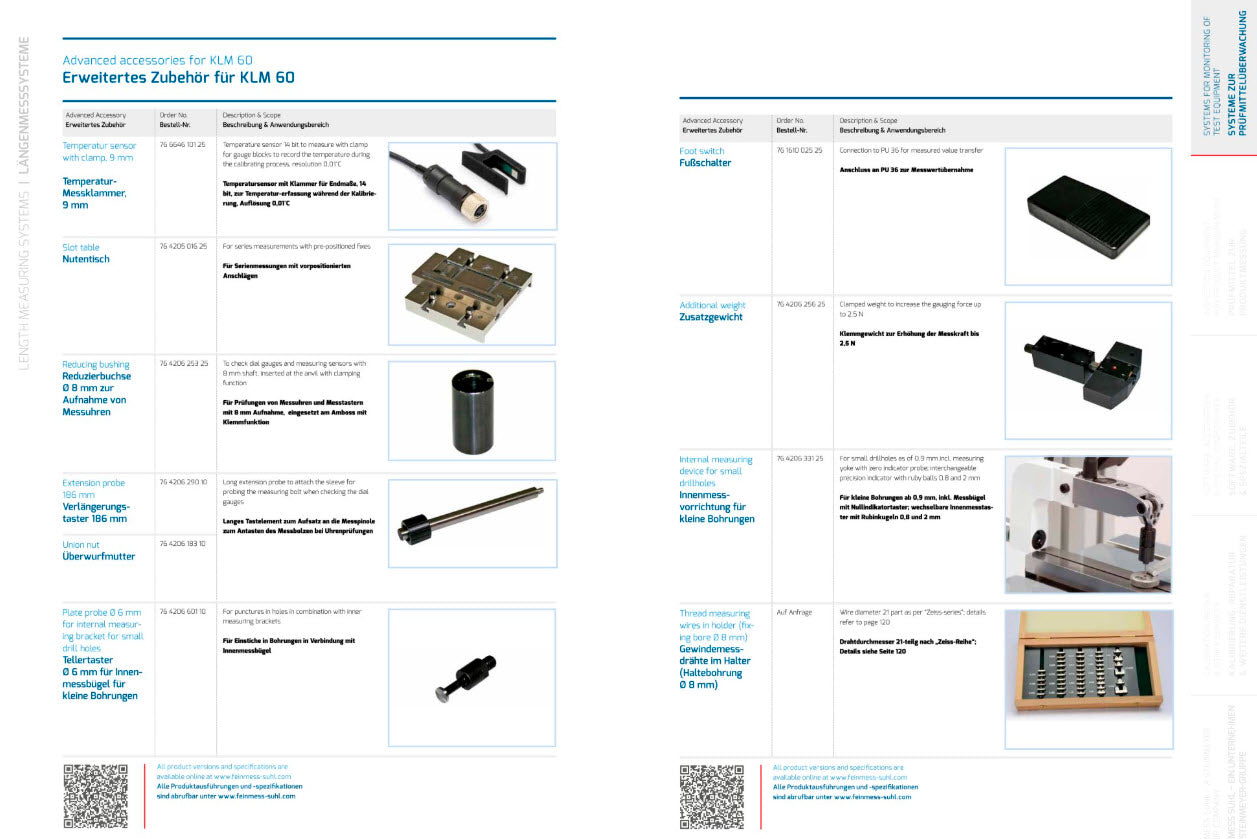

• Wide range of accessories.

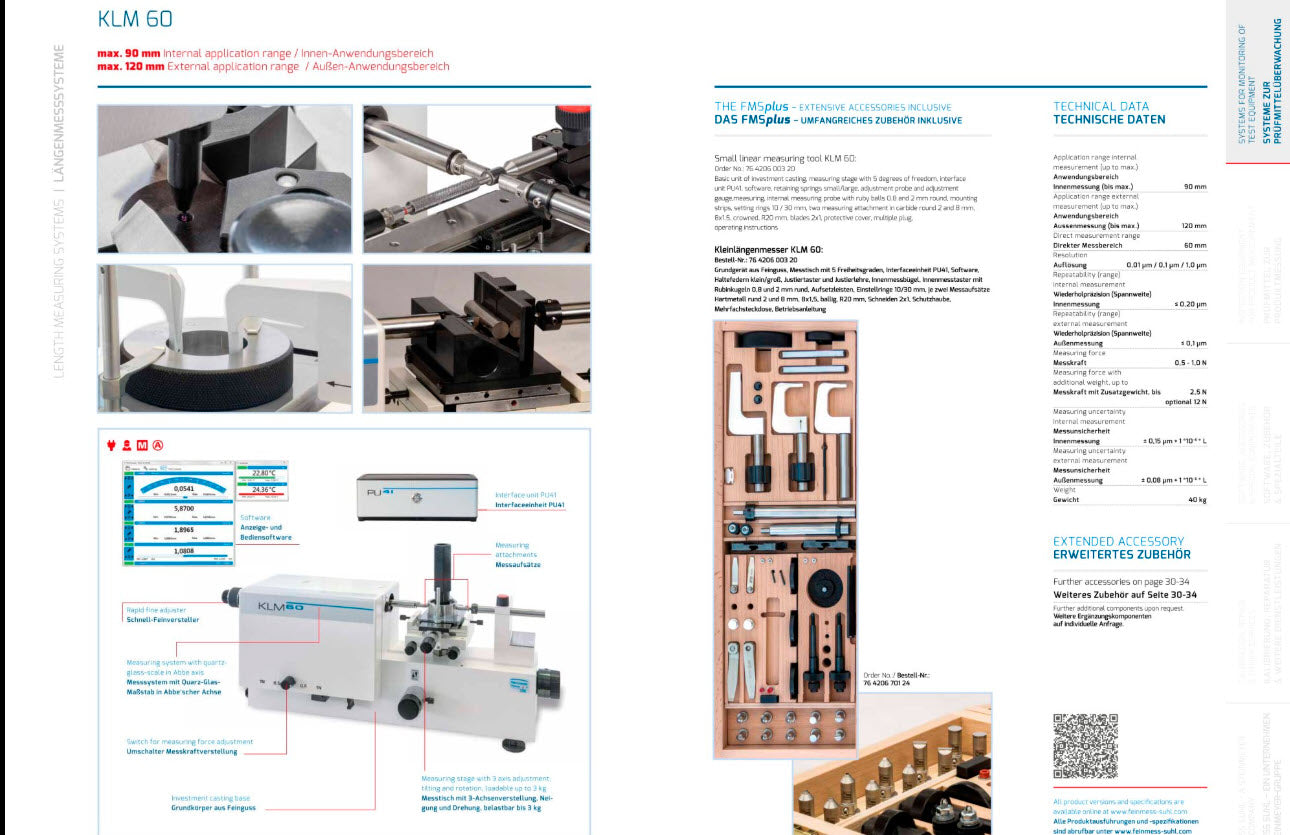

• The FMS plus - extensive accessories inclusive.

All images are for representation only.
