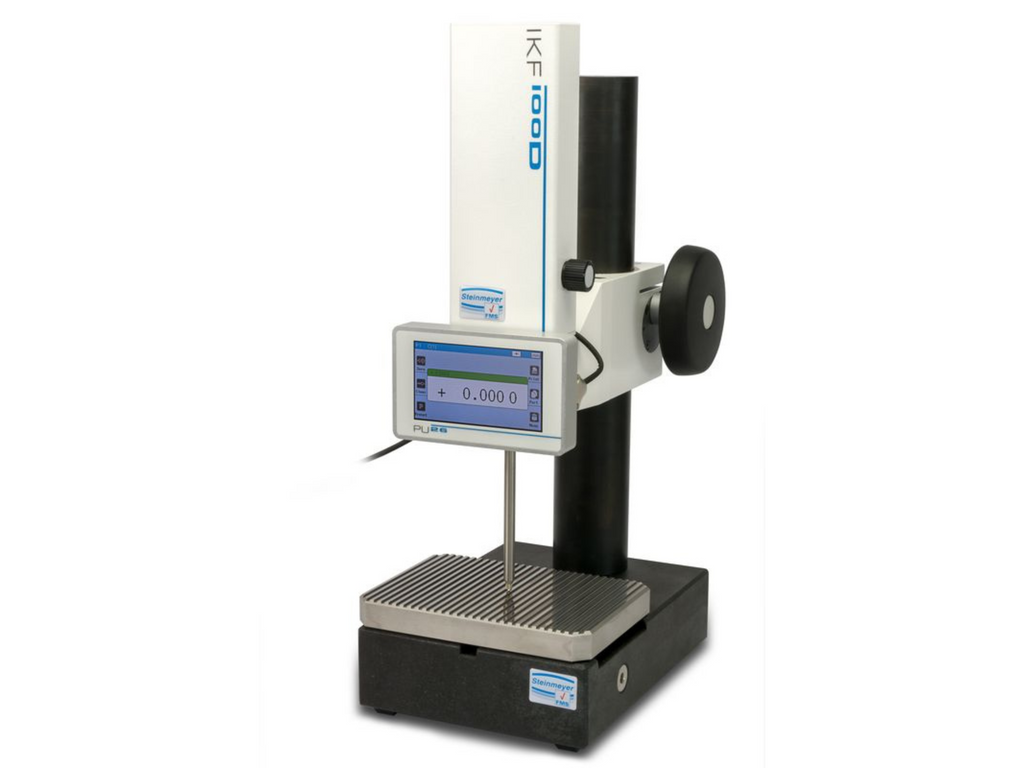

Steinmeyer IKF 100D, Manual Incremental Measuring probe

Steinmeyer IKF 100D, Manual Incremental Measuring probe

For checking and calibrating of:

• Production normals
• Pin gauges
• Plug gauges
• Workpieces
• Threaded plug gauges

Technical data

• Application range / path 103 mm; 0-4 inch
• Resolution 0,01 µm
• Clamping shaft 28H6
• Protection degree IP40
• Measuring force 1 ,8 N
• System accuracy 0,3 µm
• Permissible shear force 2 N
• Power supply 5 V DC, Mini USB
• Operating position vertical
• Weight 2.600 g

Benefits

• High-precision measuring results by resolution 0,01 µm
• High repeatability, operator independent by constant measuring force
• Measuring objects up to 100 mm can be measured
• Compact vertical measuring system with integrated display unit PU26
• Ideal for use in production hall
• Measuring data can be processed with interface on the PU26
• Exchangeable measuring tips with M2,5
