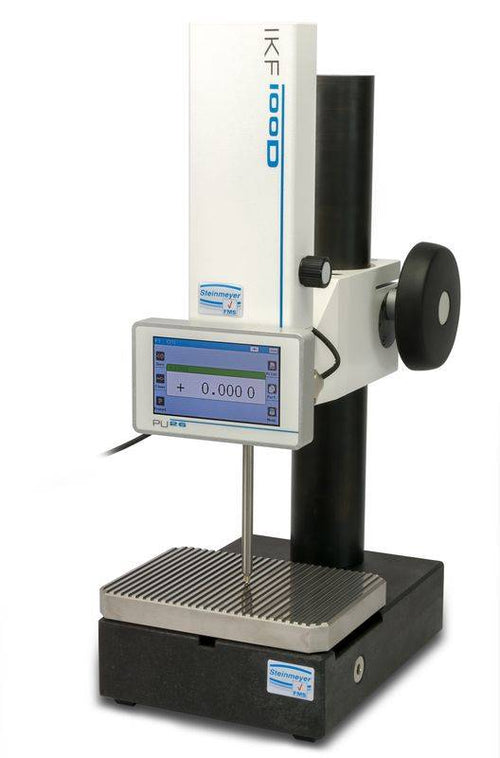

Steinmeyer Feinmess Suhl 76401190220 Incremental probe IKF 100D with display Manual Drive
Roll over image to zoom in Click on image to zoom
Steinmeyer Feinmess Suhl 76401190220 Incremental probe IKF 100D with display Manual Drive

Steinmeyer Feinmess Suhl 76401190220 Incremental probe IKF 100D with display Manual Drive

Steinmeyer SKU: 76401190220
Price: €8,995.00 Excluding VAT
PDF

Stand is not Included see 76387622225

The IKF 100D is a manually driven, incremental optical measuring system for vertical applications, distinguished by its exceptionally high repeatability. The measuring pin is aligned with the measuring system, thus adhering to the Abbe principle. The display unit visualizes the measurement results of the high-precision length measurements of manufactured workpieces, test specimens, measuring pins, or gauge blocks. The measurement results can be transferred to a PC and visualized and further processed using the FMS-View software.

Advantage:

  • Highly precise measurement results thanks to a resolution of 0.01 μm
  • High repeatability thanks to constant measuring force – independent of the user.
  • Measuring objects up to 100 mm
  • Ideal for testing close to the production line.
  • Interchangeable inserts with M2.5 thread
  • Compact measuring system with integrated display

Technical data

Manufacturer's designation IKF 100D
Energy supply Network-operated
Measuring range min. 0 mm
Maximum measuring range 100 mm
Base plate Yes
operation manually
Product type Length measuring device
Total length 200 mm
Total width 200 mm
Total height 425 mm
Weight 2.4 kg
Maximum measuring force. 1.8 N
resolution 0.01 µm
interface RS 232
with display Yes
Display type LCD

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
