Steinmeyer BMG Manual measuring tape calibrator

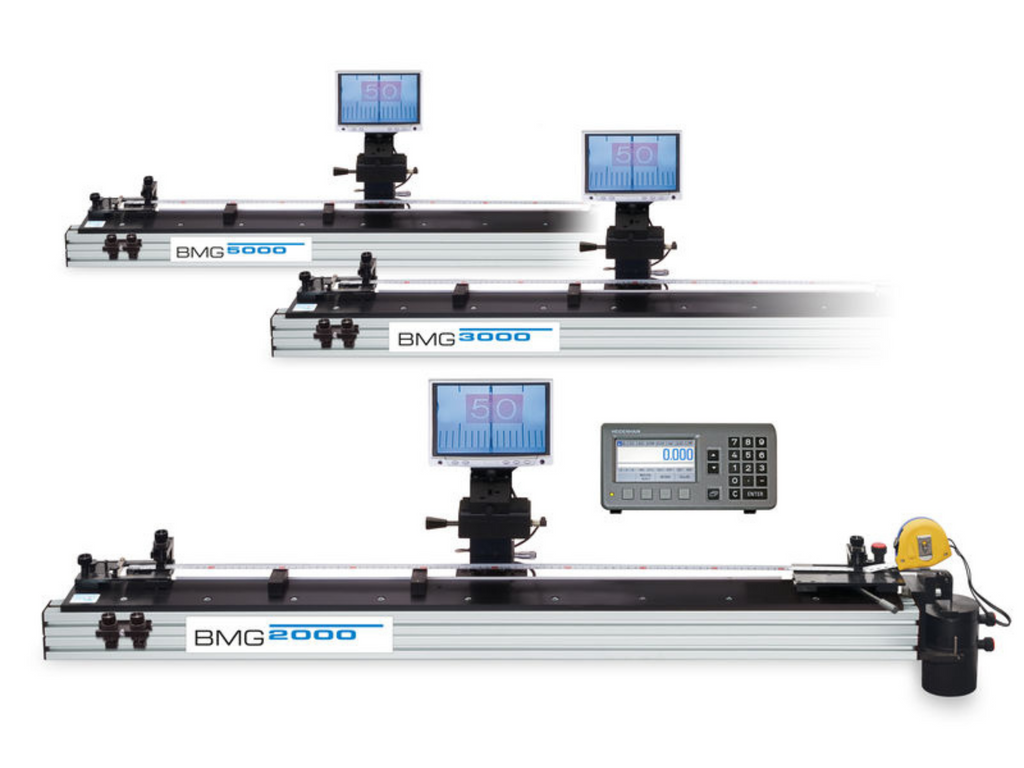

The tapeline measuring device enables manual calibration and testing of tapelines, straight edges, yardsticks and all test objects with scales. As a manual variant for lengths to 5m.
Technical data
- Resolution 1 µm
- Tensile load 5 N / 20 N / 50 N
- Clamping range device-dependent
- Error limit 2000 mm < 0,05 µm / 3000 mm < 0,07 µm / 5000 mm < 0,09 µm
- Weight 2000 mm = 67 kg / 3000 mm = 105 kg / 5000 mm = 169 kg
Benefits

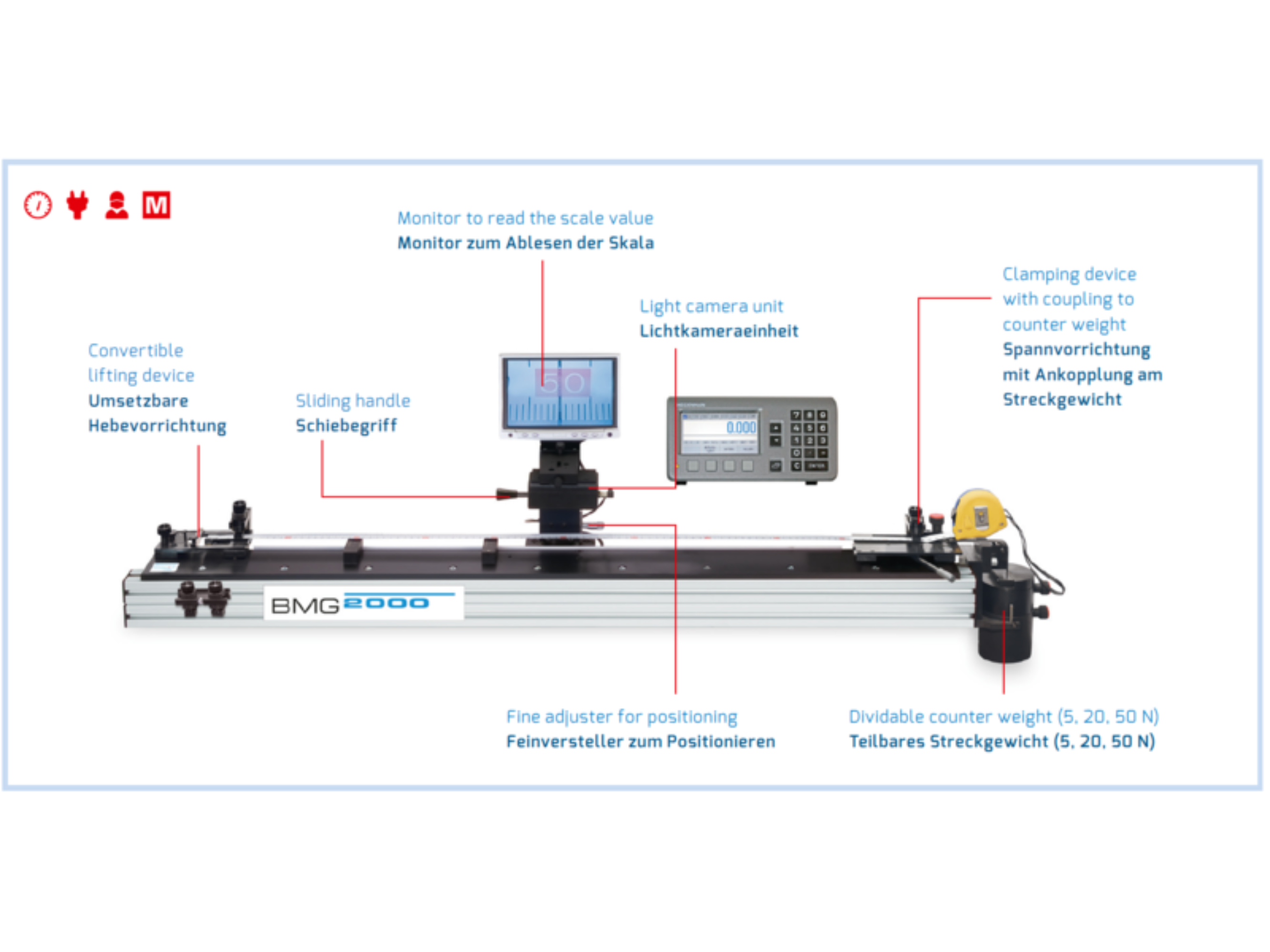

- Direct measurement comparison with highly accurate measuring system
- Counter forces of 5, 20 and 50 N, depending on requirement

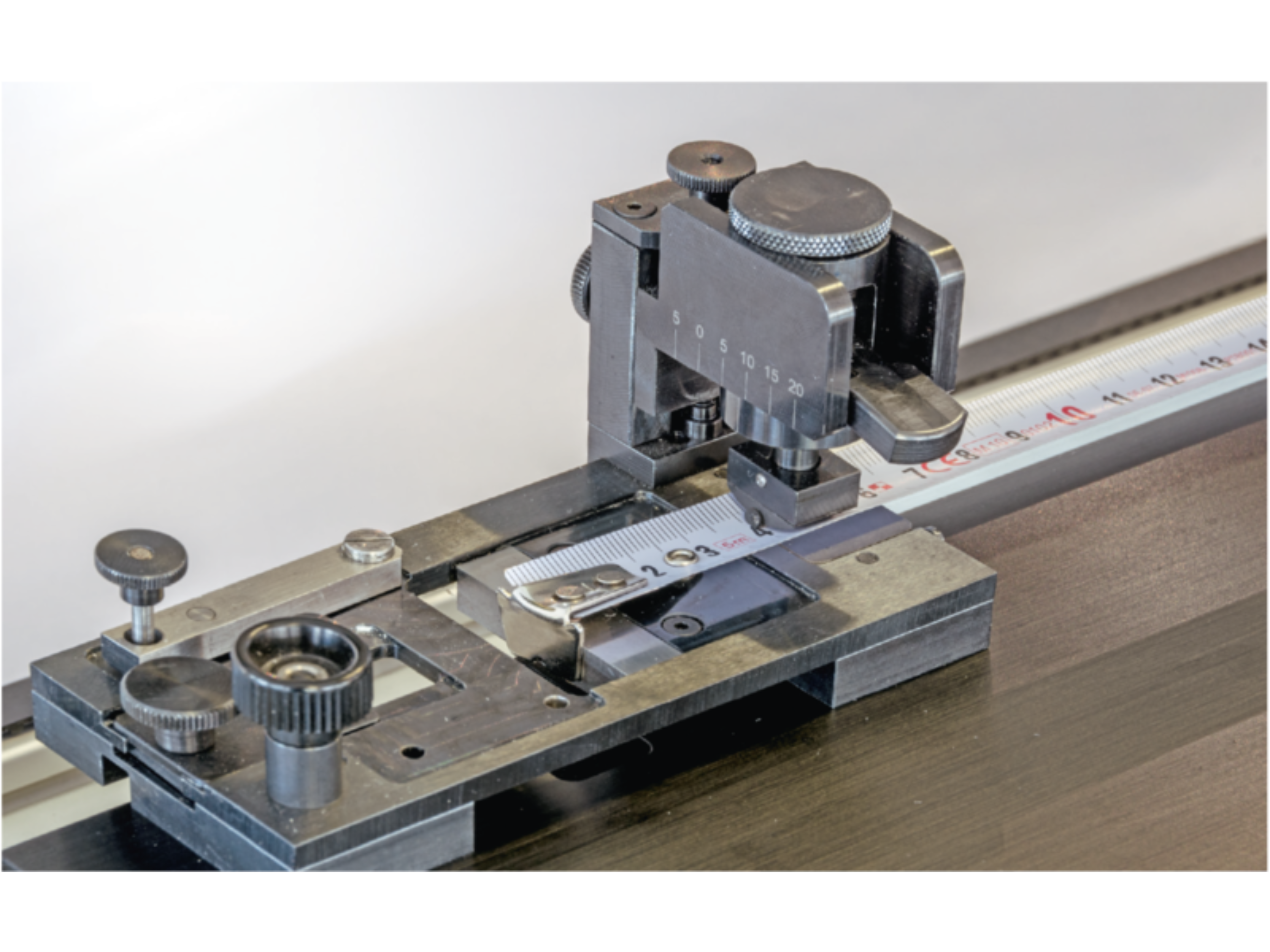

- Measuring system directly underneath specimen
- Camera and monitor simply taking a reading
- Optional extensions for connection to all current test equipment monitoring software
