Steinmeyer BMD-P 130 Plug Gauge Test Instrument

Steinmeyer BMD-P 130 Plug Gauge Test Instrument

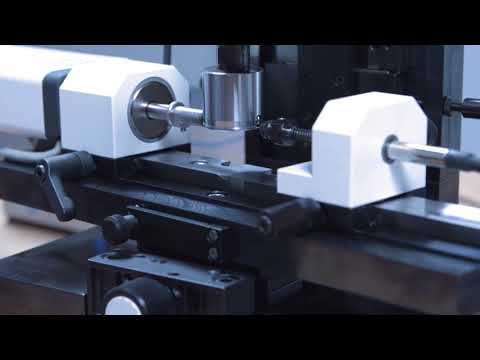

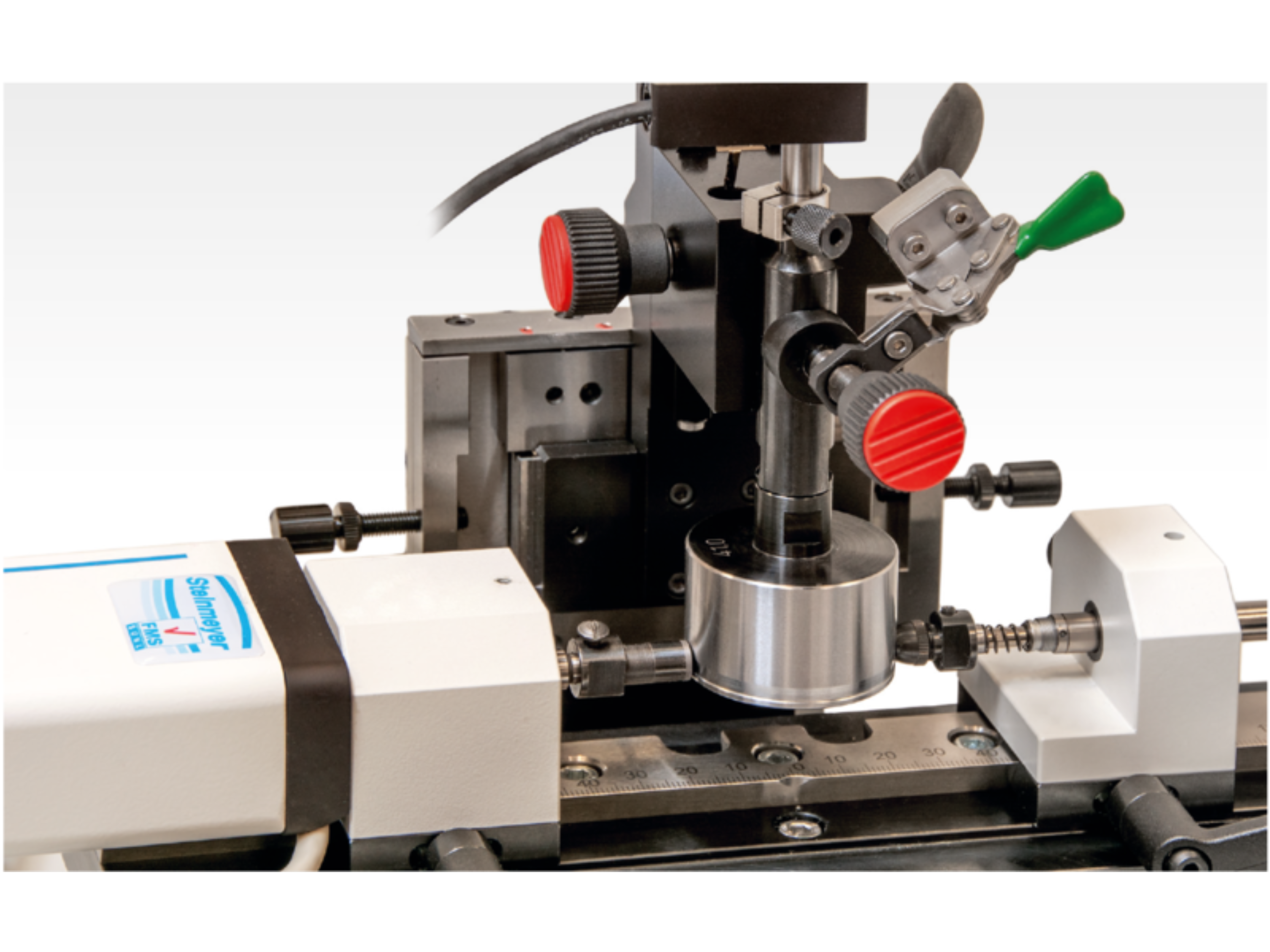

High-precision calibration system as 2-point measurement for checking and calibrating plug gauges, internal measuring tools and probes, blind hole probe and measuring probe for internal gearing

• Suitable for diametrical probe areas up to 130 mm diameter

View Data Sheet

Contact our Sales Department for a demonstration or quotation.

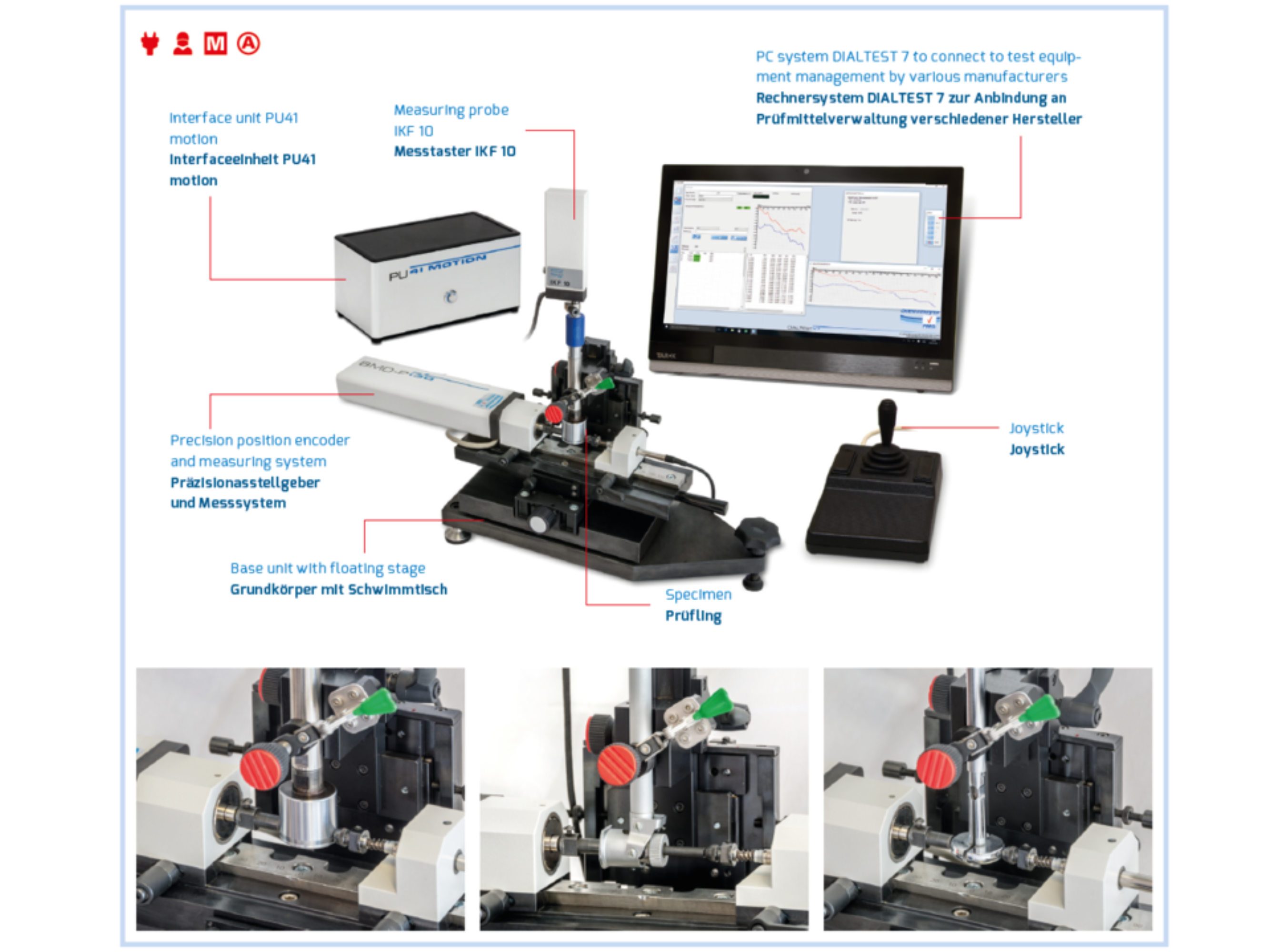

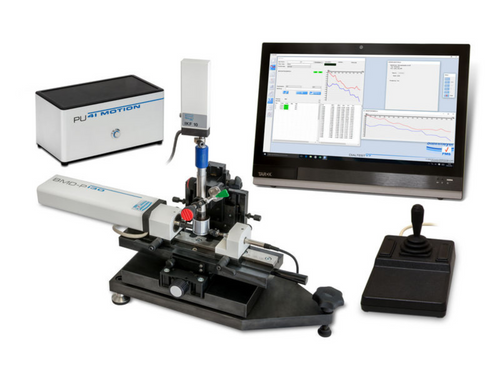

System description

• The KLM 120 has a measuring table with 3-axis adjustment and additional tilt and rotation functions and can be loaded up to 3 kg.
• A floating table enables the moment-free positioning of the measuring object.
• The separate PU41 interface unit with USB connection transmits the measurement data of the X, Y, and Z axes to the PC.
• The intelligent measured value processing with the IQ-Basis software from AHP or QM-Soft offer standard-compliant, ready-made test programs and provide a final test report that can be individually adapted if required.
• With the extensive range of standard accessories, a large part of all measuring tasks can be realized immediately. In addition, special accessories such as floating tables or quick-clamping elements as well as thread testing sets are available to expand the range of applications - for simple and economical calibration.

Technical data

• Application range up to ø 130 mm
• Height of probe areas above the guide 20 mm
• Direct Application range 30 mm
• Resolution 0,01 µm
• Diameter of the probe shaft 4 - 21 mm
• Weight 12 kg

Benefits

• Fully automatic or manual measurements
• For internal probes with diametrical probe areas
• Relative and absolute measurements possible
• The test set-up corresponds to VDI/VDE/DGQ 2618 sheet 13.2
• Mobile application thanks to a compact design
• Automatic logging based on the control and analysis software DIALTEST 7
• Very high measuring accuracy at fast measuring speed by using a motor and a passive probe which is located in the horizontal measuring axis
• Manual entry of measured values is possible

All images are for representation only.
