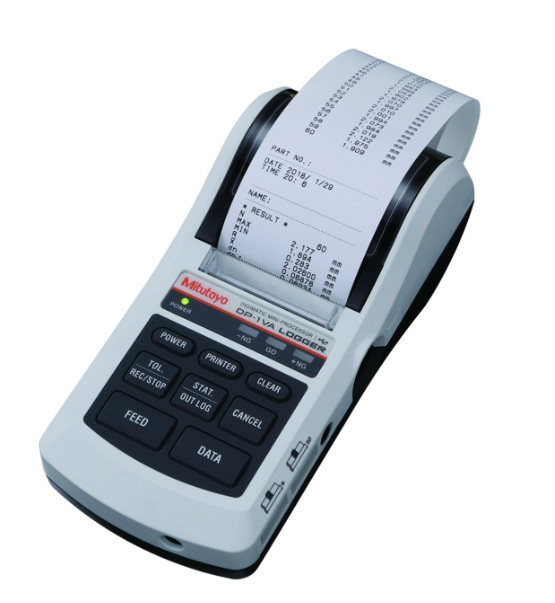

This DP-1VA printer allows you to print statistical evaluations a.s.o., and is so compact it fits right in the palm of your hand.
The DP-1VA offers the following benefits:
- Digimatic 2 Support
- 8 digits output for data printing and analysis even from high resolution or long stroke instruments.

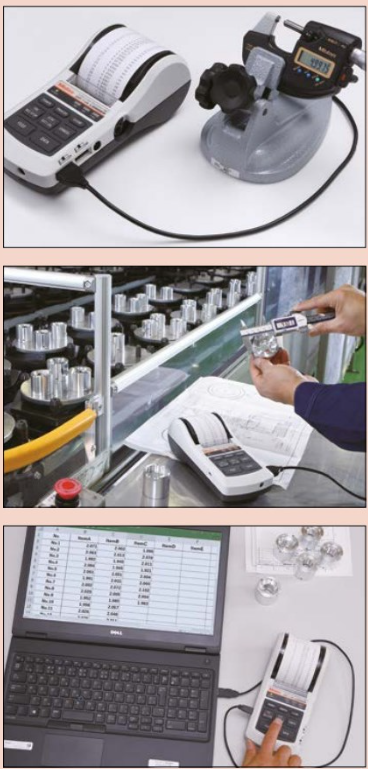

- Statistical evaluations, and data printout from calipers, micrometers and other measuring devices equipped with a Digimatic port.
- Excellent printing speed, prints upon one-touch start and at low noise level. The thermosensitive paper has outstanding durability andchemical resistance for long-term storage.
- Timer function for timed measurement data loading
- Easy data transfer from printer to PC. USB (VCP/HID) output for PC (USB IT-PAK Vers. 2.1 or later, MeasurLink, Excel a.s.o.)
- Data Logger Function
Saves up to 1000 data records with time and date. Data can be saved even after the power is turned off.

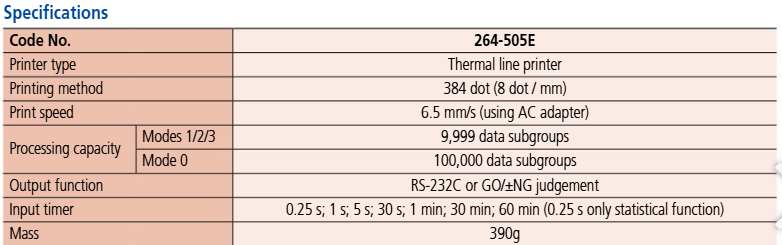

| Data input: |
Digimatic, Digimatic 2, RS-232C Input (KA-Counter only)
|
| Printer type: |
Thermal line printer
|
| Printer speed: |
6.5 mm/s (using AC adapter)
|
| Printer line number: |
7,000 lines/roll (with large font)
10,000 lines/roll (with normal font) |

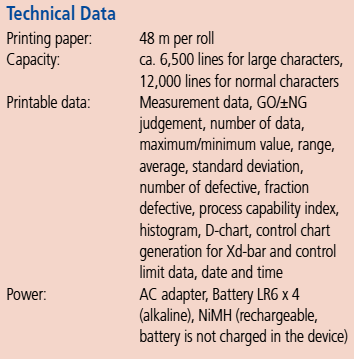

| Printer paper: |
Width: 58 mm, length: 48 m
|
| Processing capacity: |
Mode 0: 100,000 data entries
Mode 1/2: 9,999 data entries Mode 3: sample size 10x subgroup 9,999 = total number of data entries 99,990 |
| Logging of the measurement data (to store): |
Max. 1000 points
|
| Printable data: |
Measurement data, GO/±NO GO judgement, number of data, maximum/minimum value, range, average, standard deviation, number of defective, fraction defective, process capability, index, histogram, D-chart, control chart, generation for Xd-bar and control limit data, date and time
|
| Data output: |
USB, RS-232C at TTL level, tolerance judgment result (-NG, GO, +NG)
|
| Power supply: |
AC adapter 6V, battery: LR6 x 4 (alkaline) or AA x 4 Ni-MH (rechargeable, battery is not charged in the device)
|
| Battery life: |
Appr. 10000 lines (with 1600 mA Ni-MH and print 1 time/5 s)
|
| Timer function: |
0.25 s; 1 s; 5 s; 30 s; 1 min; 30 min; 60 min
(0.25 s only statistical function) |
| Mass: |
390 g
|
