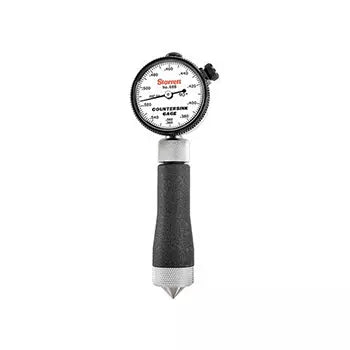

Starrett 689-3Z 90 Degree Countersink Gauge: .360-.560″
Roll over image to zoom in Click on image to zoom
Starrett 689-3Z 90 Degree Countersink Gauge: .360-.560″

Starrett 689-3Z 90 Degree Countersink Gauge: .360-.560″

Schwenk SKU: 689-3Z
Price:
€538.00
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

688-3Z Starrett 90 Degree Countersink Gauge: .360-.560″

The Starrett 688-3Z Countersink Gauge has the following specifications:

  • Range: .360-.560″
  • Graduations: .002″
  • Angle: 90°
  • EDP: 63704

Starrett Countersink Gauges are offered in three different angles so that the gauge sets on the angular side of the countersink, as opposed to a chamfer gauge which sets on the top edge of the chamfer.

This gauge directly reads the large diameter of the countersink in .002″ or 0.05 mm increments.

A set master ring is furnished with each gauge for calibration and setting. Press the button on top of the indicator to firmly depress the gauge head into the countersink. When the gauge is removed, the indicator reading is held in place until the reset button is activated. All ground surfaces are of hardened tool steel Indicators are AGD design.

Features:

  • Ground surfaces are of hardened tool steel
  • Indicators AGD design
  • 82°, 90° and 100° Angles
  • Directly reads the large diameter of the countersink
  • Includes set master ring

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
