Standard DTI, Flat Back, ISO Type, Shockproof, 5mm, 0,01mm 2044AB-09

Mitutoyo SKU: 2044AB-09
List price: €78.00 Offer price: €61.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

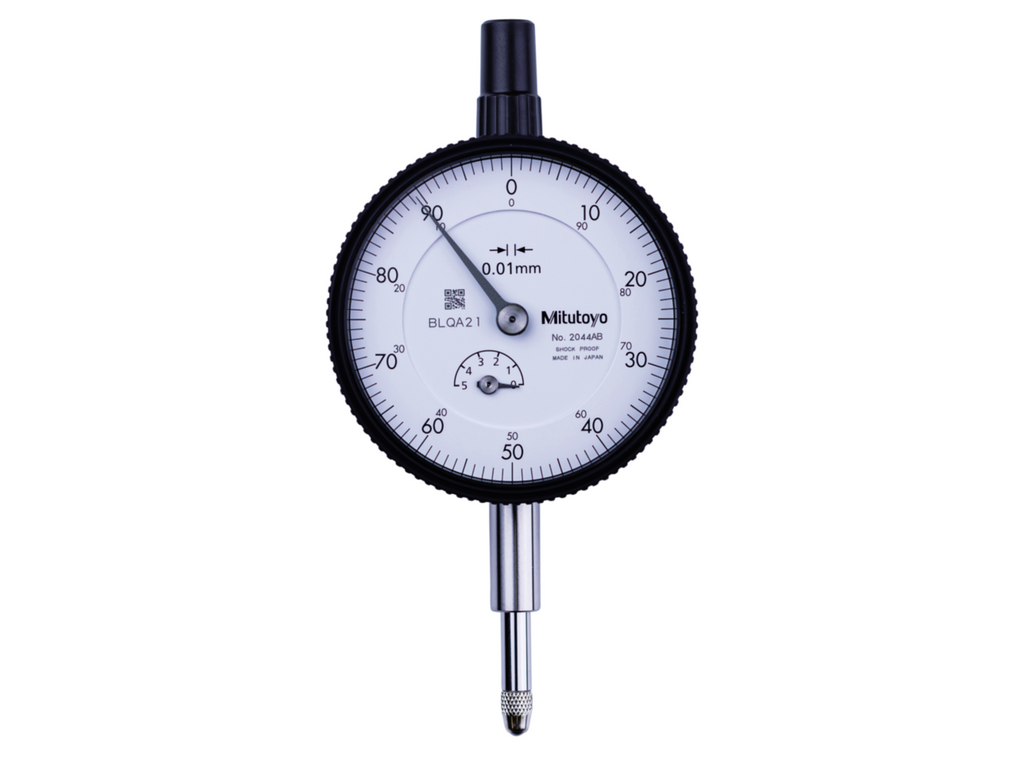

This is a standard dial indicator. It offers you the following benefits:
  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
Features
Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
ISO type
Delivered:
With certificate of inspection
Range:
5 mm
Range
per rev.:
1 mm
Dial reading:
±0-100
Graduation:
0.01 mm
Measuring force:
0,4 - 1,4 N
MPE any 1/10
revolution:
5 µm
MPE any 1/2
revolution:
9 µm
MPE any 1
revolution:
10 µm
MPE measuring range:
12 µm
H MPE
(Hysteresis):
3 µm
R MPE
(Repeatability):
3 µm
Mass:
147 g
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:
Yes
Shockproof:
Yes
