Spline Micrometer 25-50mm, 3mm Measuring Face 111-116

Mitutoyo SKU: 111-116
List price: €249.00 Offer price: €193.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

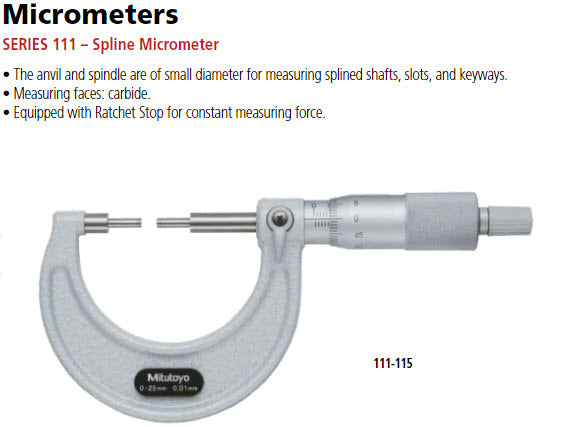

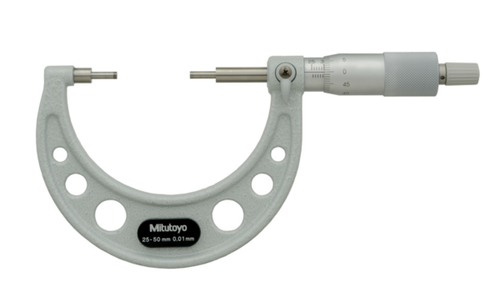

A Mitutoyo non-digital micrometer provided with a spindle and anvil reduced in diameter to enable measurement within slotted features, such as keyways. A ratchet stop guarantees repeatable measurement.

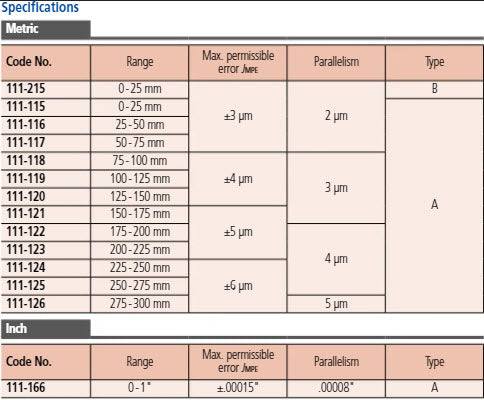

Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
25 - 50 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±3 µm
Flatness:
0,3 µm
Parallelism:
2 µm
Measuring face:
Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:
Type A, D=3 mm
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
305 g
