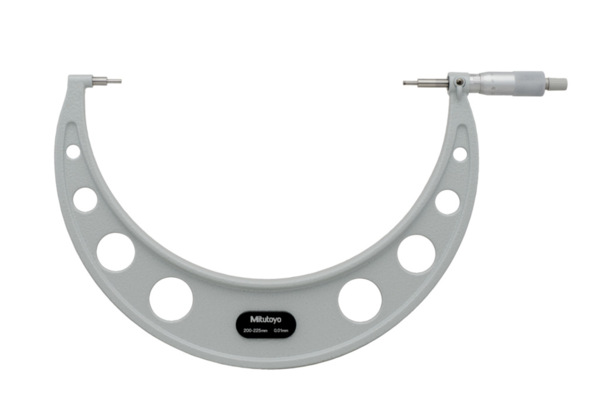

Spline Micrometer 200-225mm, 3mm Measuring Face 111-123

Roll over image to zoom in Click on image to zoom

Spline Micrometer 200-225mm, 3mm Measuring Face 111-123

Name: Spline Micrometer 200-225mm, 3mm Measuring Face 111-123
Brand: Mitutoyo
SKU: 111-123
Price: 437.09 EUR
Availability: InStock

MitutoyoSKU: 111-123

Price:

€437.09 €598.75

Quantity:

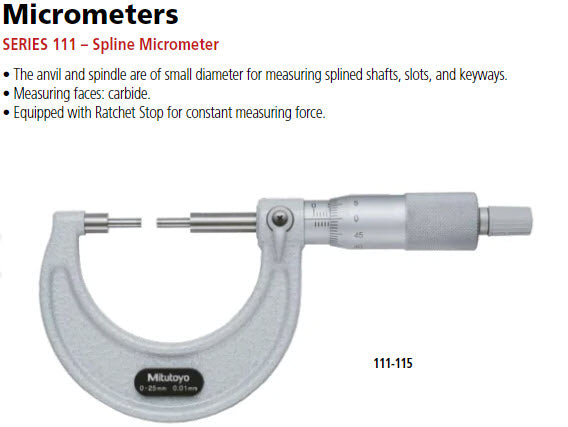

This Spline Micrometer makes it easy for you to measure grooves and shaped parts.
It offers you the following benefits:

Stepped measuring surfaces.
Suitable for measuring grooves, splined shafts, recesses, shaped parts, etc.

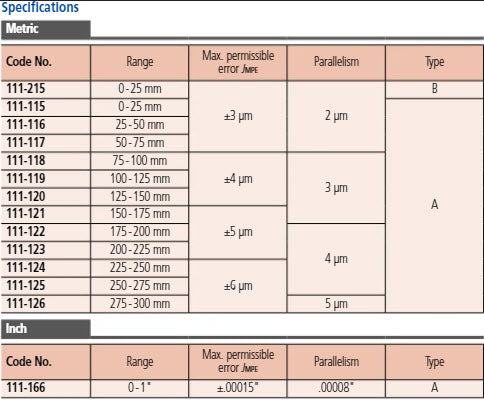

Product Information
Part Number	111-123
Measuring Range	200-225mm
Accuracy	["±.005mm"]
Graduation	.01mm
Accuracy	+/-.005mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	Spline
Constant Force Device	Ratchet Stop
Flatness	.0003mm
Parallelism	4µm

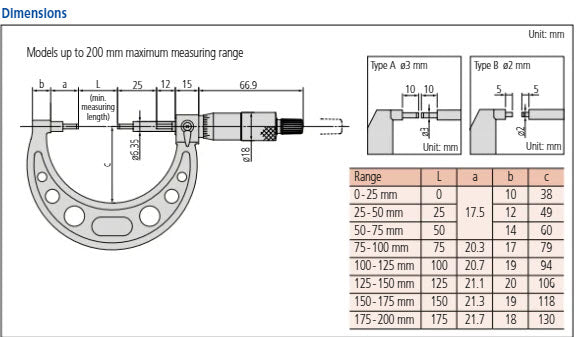

Anvils & Spindle Design	Reduced from 6.35mm to 3mm x 10mm for type A
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	200 - 225 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±5 µm
Flatness:	0,3 µm
Parallelism:	4 µm
Measuring face:	Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:	Type A, D=3 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	1245 g
